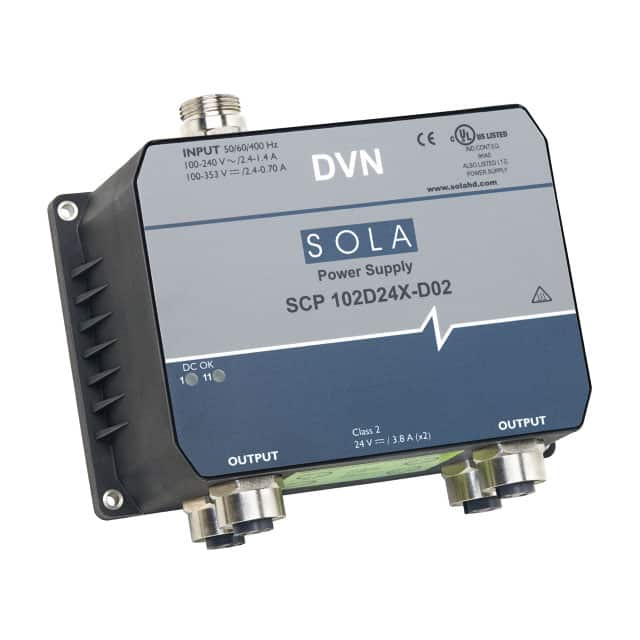

The SolaHD SCP102D24X-D02 is part of the SCP-X series, designed for reliable distributed and remote 24 VDC power in harsh industrial environments. This power supply delivers 2 x 100 Watts of regulated 24 VDC output, totaling 200W with a maximum of 7.6 Amps.
Featuring an IP66/67 enclosure, it is suitable for direct machine or chassis mounting, reducing the need for separate enclosures and simplifying field wiring. The input voltage range is universal, accepting 85–264 VAC or 100–353 VDC, and it operates across single-phase frequencies of 50/60/400 Hz. The operating temperature range is -25°C to 70°C with derating.
Applications include machine control systems, distributed I/O devices, automotive manufacturing, conveyor and material handling systems, remote field devices, and industrial production lines. Its robust design and sealing simplify installation while ensuring dependable power delivery close to the load.
The SolaHD SCP102D24X-D02 provides a 24 VDC output voltage.
The total output current for the SCP102D24X-D02 is 7.6 Amps.
The SolaHD SCP102D24X-D02 has a total output power of 200 Watts.
The SCP102D24X-D02 accepts input voltages from 85–264 VAC and 100–353 VDC.
The operating temperature range for the SCP102D24X-D02 is -25°C to 70°C, with derating.
The SolaHD SCP102D24X-D02 has an IP66/67 ingress protection rating.
The SolaHD SCP102D24X-D02 is designed for machine or chassis mounting.
