| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

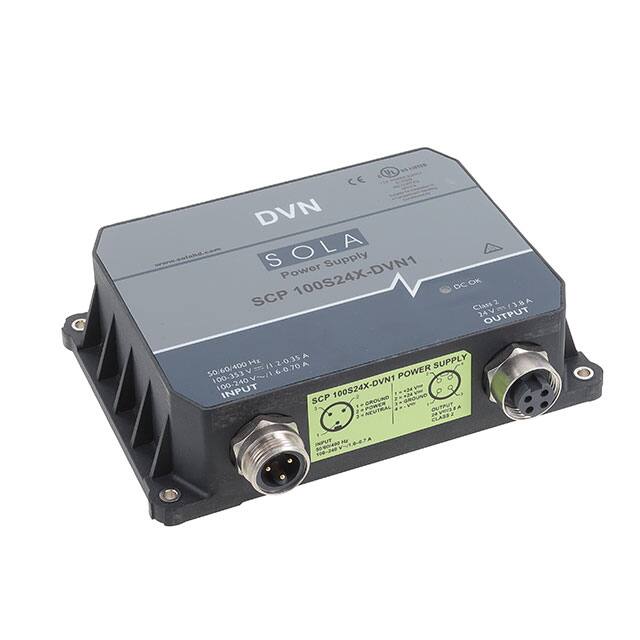

The SolaHD SCP100S24X-DVN1 is an enclosed AC DC converter designed for demanding industrial and ITE commercial applications. It offers a robust 100W power output with a 24V rating, suitable for various power supply needs.
Key features include IP67 environmental protection, ensuring resistance to dust and water ingress, and a universal input voltage range of 85 to 264 VAC or 100 to 353 VDC. This wide input capability makes it versatile for global use. The converter operates within a temperature range of -40°C to 70°C, with derating applied at higher temperatures.
Designed for chassis mounting, this unit provides a single output and meets CE and cULus approval standards. Its dimensions are 177.8mm in length, 45.7mm in width, and 120.1mm in height, making it a compact solution for integration into various systems. The current rating is 3.8A.
85 to 264 VAC and 100 to 353 VDC.
The converter is enclosed with a chassis mount design.
-40°C to 70°C with derating.
24V at 3.8A, providing 100W.
IP67.
CE and cULus.
177.8mm x 45.7mm x 120.1mm (LxWxH).
