| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Protection Features | |
| Rated Current | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

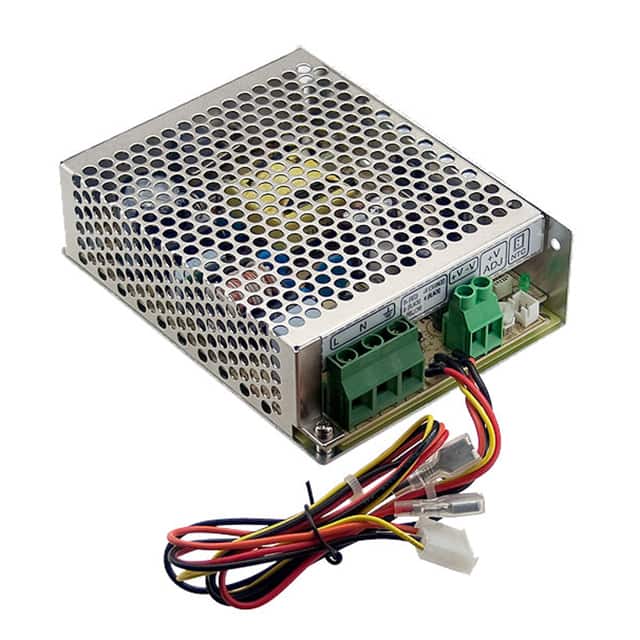

The Mean Well USA SCP-50-12 is a 50-watt enclosed AC/DC power supply designed for various applications. It provides a nominal output voltage of 13.8V at a rated current of 3.6A, with a current range of 0 to 3.6A. The power supply operates with a universal AC input range of 85-264VAC and features a full range input.
Key electrical specifications include a rated power of 49.7W, an efficiency of 81% typical, and a load regulation of ±1.0%. The output voltage is adjustable within a range of 16.6V to 19.3V. Protection features include overload, over voltage, and short circuit protection.
This power supply is designed for chassis mounting and operates within a working temperature range of -20°C to +60°C. It meets safety standards including BS EN/EN55032 (CISPR32) Class B and EMC immunity standards such as EN61000-4-2, 3, 4, 5, 6, 8,11. The dimensions are 129.0mm in length, 98.0mm in width, and 38.0mm in height.
The SCP-50-12 has a nominal output voltage of 13.8V.
The rated current for the SCP-50-12 is 3.6A.
The SCP-50-12 accepts a universal AC input voltage range of 85 to 264VAC.
The dimensions of the SCP-50-12 are 129.0mm in length, 98.0mm in width, and 38.0mm in height.
The SCP-50-12 operates within a temperature range of -20°C to +60°C.
The SCP-50-12 includes short circuit, overload, over voltage, and battery polarity protections (by fuse).
