SCM1245MF The Sanken SCM1245MF is a Half Bridge Driver IC designed for Home Appliance applications. It operates with a supply voltage of 13.5V to 16.5V and a load voltage up to 600V.
Mfr Part #:

SCM1245MF

Available from 2 distributors
Mfr Name: Sanken
Sanken
The Sanken SCM1245MF is a Half Bridge Driver IC designed for Home Appliance applications. It operates with a supply voltage of 13.5V to 16.5V and a load voltage up to 600V.
✓ Total Stock: 2,275 pcs
$ Price Range: $2.25

SCM1245MF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,264 pcs
On Request
2264 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SCM1245MF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Operating Voltage
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

SCM1245MF Description

Short technical summary and product information.

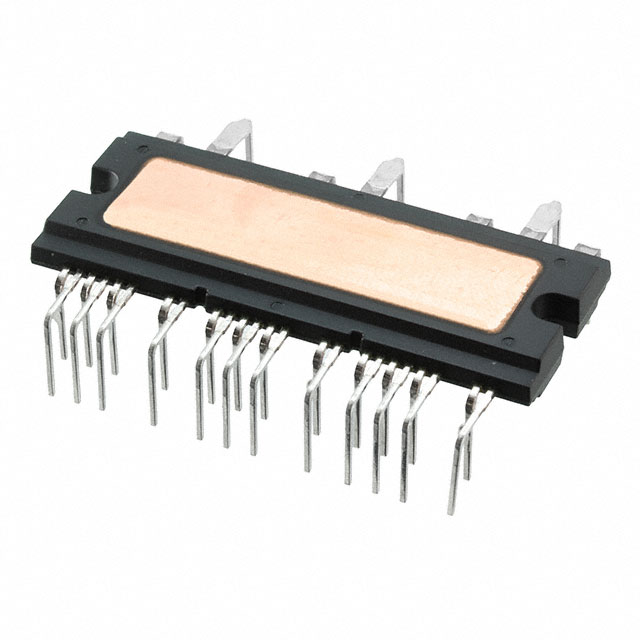

The Sanken SCM1245MF is an integrated circuit designed for motor control applications, specifically as a Half Bridge Driver. It is part of the SCM33 series and is suitable for Home Appliance applications.



Key electrical specifications include a load voltage capability of up to 600V (Max) and a maximum output current of 10A. The device operates with a supply voltage range of 13.5V to 16.5V and utilizes IGBT technology. The operating temperature is rated up to 125°C (TJ).



This IC is housed in a 33-PowerDIP package with an exposed pad, designed for Through Hole mounting. The output configuration is a Half Bridge (3), and it interfaces via Logic. The motor type supported is Brushless DC (BLDC).



Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited. The REACH status is unaffected.

SCM1245MF Quick Information

Product Type: Motor Driver IC
Canonical Name: SCM1245MF Sanken Half Bridge Driver IC
Subcategory: Power Management (PMIC) - Motor Drivers, Controllers

SCM1245MF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SCM1245MF Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

SCM1245MF Features

  • Half Bridge Driver IC for BLDC motors.
  • 600V maximum load voltage capability.
  • 10A maximum output current.
  • Operates up to 125°C (TJ).
  • RoHS3 compliant for environmental standards.

SCM1245MF Applications

  • Ideal for home appliance motor control.
  • Drives three-phase brushless DC motors.
  • Suitable for 600V class motor applications.
  • Provides 10A output for medium-power drives.

SCM1245MF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SCM1245MF?

The operating voltage is between 13.5V and 16.5V.

What is the maximum load voltage for the SCM1245MF?

The maximum load voltage is 600V.

What is the output current of the SCM1245MF?

The output current is 10A.

What is the operating temperature of the SCM1245MF?

The operating temperature is 125°C (TJ).

How is the SCM1245MF mounted?

The SCM1245MF is mounted through hole.

What type of motor does the SCM1245MF drive?

The SCM1245MF is designed for Brushless DC (BLDC) motors.

What is the package type for the SCM1245MF?

The package is 33-PowerDIP (1.307", 33.20mm) Exposed Pad.
