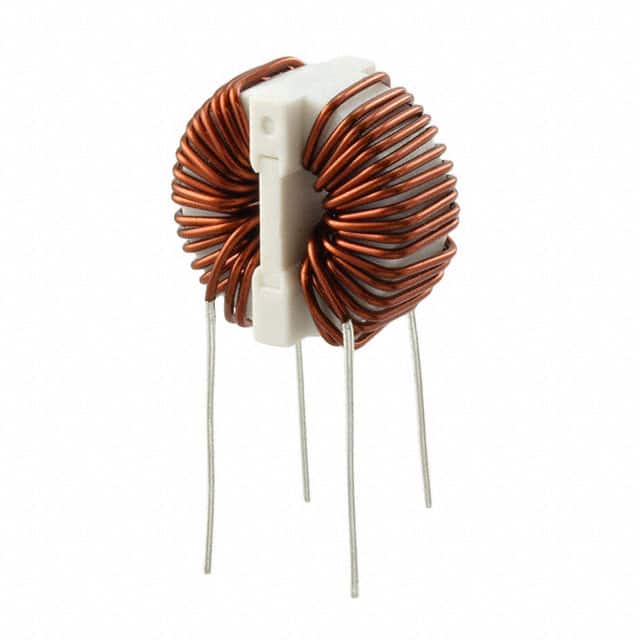

SCF20-05-550 The Yageo SCF20-05-550 is a common mode choke designed for power line filtering. It features a 5.5mH inductance and a 5A current rating.
Mfr Part #:

SCF20-05-550

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo SCF20-05-550 is a common mode choke designed for power line filtering. It features a 5.5mH inductance and a 5A current rating.
✓ Total Stock: 17 pcs
$ Price Range: $0.99

SCF20-05-550 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SCF20-05-550 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Inductance @ Frequency
Length
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
Width
View Similar Products (0)

SCF20-05-550 Description

Short technical summary and product information.

The Yageo SCF20-05-550 is a common mode choke suitable for power line filtering applications. This component offers a nominal inductance of 5.5 mH at 10 kHz, with a maximum current rating of 5A and a DC resistance of 28mOhm.



Designed for reliability, it has a voltage rating of 250V and operates within a temperature range of -25°C to 120°C. The choke has a compact size with dimensions of 25.00mm in length and 15.50mm in width, with a maximum height of 25.00mm.



This common mode choke features a through-hole mounting type and comes in a vertical package with no base and 4 PC pins. It is specified with 2 lines for filtering.



Environmental compliance includes RoHS3 compliance and an MSL of 1. The REACH status is unaffected. Note that compliance data is currently unverified.

SCF20-05-550 Quick Information

Product Type: Common Mode Choke
Canonical Name: Yageo SCF20-05-550 Common Mode Choke
Subcategory: Filters

SCF20-05-550 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SCF20-05-550 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SCF20-05-550 Features

  • Common mode choke for power line filtering.
  • 5.5 mH inductance at 10 kHz.
  • Rated for 5A maximum current.
  • 250V voltage rating.
  • Through hole mounting type.

SCF20-05-550 Applications

  • Ideal for power supply filtering.
  • Used in noise suppression circuits.
  • Suitable for industrial equipment.
  • Applicable in consumer electronics.

SCF20-05-550 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the Yageo SCF20-05-550 common mode choke?

250V.

What is the package type for this common mode choke?

Through Hole, Vertical, No Base, 4 PC Pin.

What is the operating temperature range?

-25°C to 120°C.

What is the inductance value of the SCF20-05-550?

5.5 mH at 10 kHz.

What is the current rating of the SCF20-05-550?

5A maximum.

What is the DC resistance of this choke?

28 mOhm maximum.

How many lines does this common mode choke have?

2.
