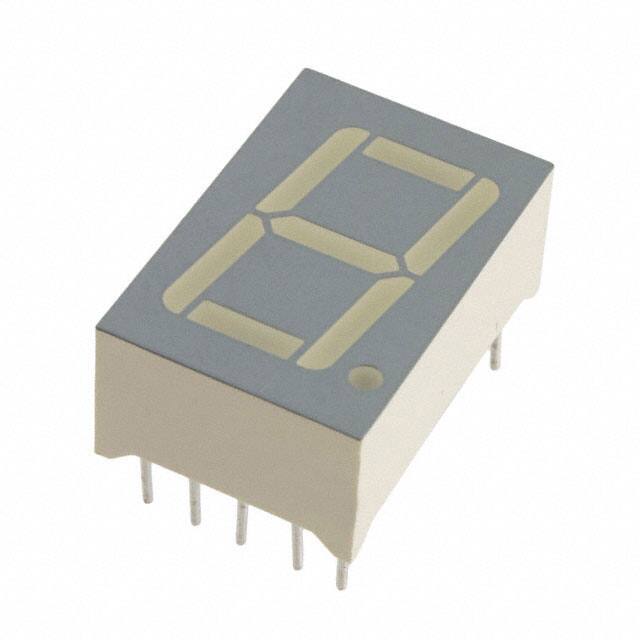

SC56-11GWA The Kingbright SC56-11GWA is a single digit, 0.56-inch green 7-segment numeric display. It operates with a typical forward voltage of 2.2V and a nominal current of 20mA.
Mfr Part #:

SC56-11GWA

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright SC56-11GWA is a single digit, 0.56-inch green 7-segment numeric display. It operates with a typical forward voltage of 2.2V and a nominal current of 20mA.
✓ Total Stock: 22 pcs
$ Price Range: $0.99

SC56-11GWA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SC56-11GWA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Common Pin
Current
Digit
Display Type
Junction Temperature
Lead Spacing
Millicandela Rating
Mounting Type
Number of Characters
Operating Temperature
Power Dissipation (Max)
Reverse Current
Reverse Voltage
Spectral Bandwidth
Storage Temperature
Voltage
Wavelength
View Similar Products (0)

SC56-11GWA Description

Short technical summary and product information.

The Kingbright SC56-11GWA is a single-digit numeric display featuring a 0.56-inch character height. This green light-emitting diode display is constructed with Gallium Phosphide (GaP) and has a white diffused lens.



Key electrical characteristics include a typical forward voltage of 2.2V at 10mA, with a maximum of 2.4V. The nominal DC forward current is 20mA, with a maximum rating of 25mA. The display offers a typical luminous intensity of 11,000mcd at 10mA. The peak emission wavelength is 565nm, and the dominant wavelength is 568nm.



This display is designed for easy mounting on PC boards or sockets and is mechanically rugged. It operates within a temperature range of -40°C to +85°C and has a maximum power dissipation of 62.5mW. The package is a 10-DIP (0.600", 15.24mm).



Applications include home and smart appliances, display time and digital combinations, and industrial instrumentation.

SC56-11GWA Quick Information

Product Type: Numeric Display
Canonical Name: Kingbright SC56-11GWA Single Digit 7-Segment Numeric Display
Subcategory: 7-Segment Display

SC56-11GWA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SC56-11GWA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SC56-11GWA Features

  • 0.56 inch digit height for clear visibility.
  • Green emitting color for standard indication.
  • Typical forward voltage of 2.2V at 10mA.
  • High luminous intensity of 11,000mcd typical.
  • RoHS3 compliant for environmental standards.

SC56-11GWA Applications

  • Ideal for home appliance displays.
  • Suitable for industrial instrumentation.
  • Used in digital combination displays.
  • Provides numeric status indication.

SC56-11GWA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the Kingbright SC56-11GWA display?

The typical forward voltage for the SC56-11GWA display is 2.2V at a current of 10mA.

What is the luminous intensity of the SC56-11GWA display?

The typical luminous intensity for the SC56-11GWA display is 11,000mcd at 10mA.

What is the operating temperature range for this display?

The operating temperature range for the SC56-11GWA display is -40°C to +85°C.

What package type is the SC56-11GWA display?

The SC56-11GWA display comes in a 10-DIP (0.600", 15.24mm) package.

What is the RoHS status of the Kingbright SC56-11GWA?

The SC56-11GWA is RoHS3 Compliant.
