SC4524DSETRT
Semtech
The Semtech SC4524DSETRT is an adjustable buck switching regulator designed for step-down voltage conversion. It offers a 2A output current and operates within a wide temperature range.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165,800 pcs
|
165800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,333 pcs
|
7333 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
3,421 pcs
|
3421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Semtech SC4524ESETRT is a versatile DC-DC switching regulator designed for step-down applications. It features an adjustable output voltage capability, allowing for precise voltage regulation within a range of 1V to 26.88V.
This regulator supports an input voltage range from 3V to 28V and can handle a continuous current of up to 2A. Its buck topology ensures efficient power conversion. The operating frequency can be set between 200kHz and 2MHz, providing flexibility in design.
Packaged in an 8-SOIC with an exposed pad, the SC4524ESETRT is designed for surface mount installation. It operates within a temperature range of -40°C to 105°C (TA). The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This component is suitable for various power management applications requiring adjustable voltage outputs and moderate current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 1V to 26.88V.
The input voltage range is from 3V to 28V.
The maximum current rating is 2A.

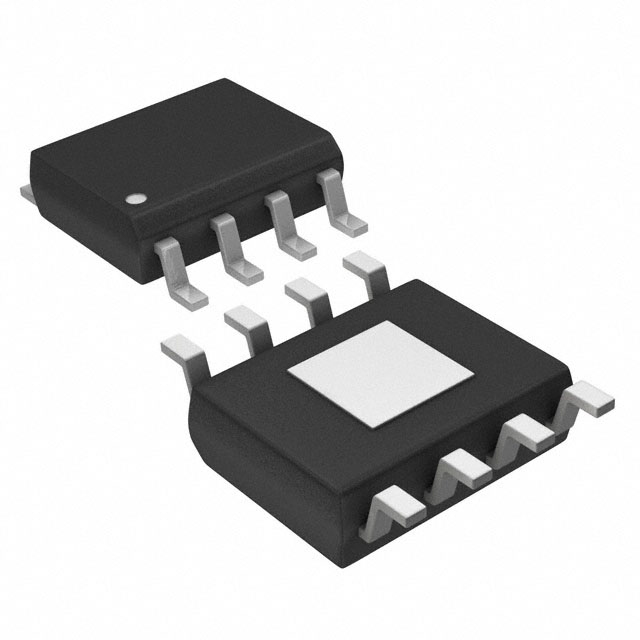

The SC4524ESETRT is supplied in an 8-SOIC package with an exposed pad.
The operating temperature range is -40°C to 105°C (TA).
The SC4524ESETRT is designed for surface mount installation.
The SC4524ESETRT utilizes a Buck topology.
