| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,455 pcs
|
1455 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,324 pcs
|
1324 pcs | On Request | 1 | On Request | On Request | 03+ | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The SC4212MLTRT is a linear voltage regulator from Semtech designed for adjustable output voltage regulation. It provides a stable output voltage adjustable from 0.5V to 5V with a maximum output current of 1A. The device features a low dropout voltage of 400mV at 1A load, making it suitable for battery-powered applications where efficiency is critical.
This regulator includes protection features such as over current, over temperature, and reverse polarity protection, enhancing system reliability. An enable pin allows for power management control. The SC4212MLTRT operates over a wide temperature range of -40°C to +125°C, suitable for industrial and automotive environments.
The device is available in a VDFN-8 (3x3mm) package with an 8-MLPD (3x3) supplier package, both surface mount. It requires a maximum input voltage of 6V. The quiescent current is 3mA, which contributes to overall power efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.5V to 5V.
The maximum output current is 1A.
The dropout voltage is 400mV maximum at 1A load.
The operating temperature range is -40°C to +125°C.

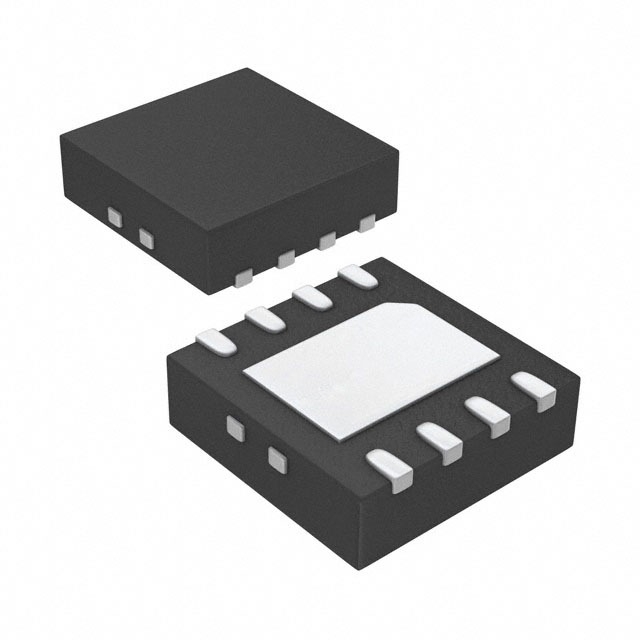

The SC4212MLTRT is available in a VDFN-8 (3x3mm) surface mount package, also specified as 8-MLPD (3x3).
It includes over current, over temperature, and reverse polarity protection.
Yes, it has an enable control feature.
