| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,515 pcs
|
1515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duration | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| SVHC Present | |
| Type |

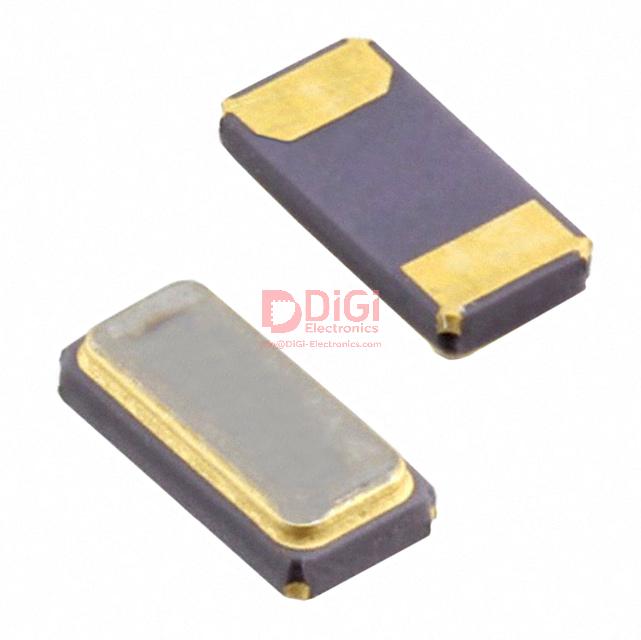

The Seiko Instruments SC32S-12.5PF20PPM is a kHz Crystal (Tuning Fork) designed for surface mount applications. It operates at a frequency of 32.768 kHz with a frequency tolerance of ±20ppm and a load capacitance of 12.5pF.
This crystal features an Equivalent Series Resistance (ESR) of 70 kOhms and operates in the fundamental mode. The device is rated for an operating temperature range of -40°C to 85°C. Its mechanical specifications include a compact size of 3.20mm x 1.50mm and a maximum seated height of 0.85mm, making it suitable for space-constrained designs.
The SC32S-12.5PF20PPM is packaged in Cut Tape (CT) & Digi-Reel® and utilizes a 2-SMD, No Lead package type, ideal for automated assembly processes. It is specified with RoHS3 compliance and an MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32.768 kHz
±20ppm
12.5pF
70 kOhms
-40°C to 85°C
2-SMD, No Lead
Surface Mount
