| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Operating Voltage | |
| Pin or Socket | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Wire Gauge |

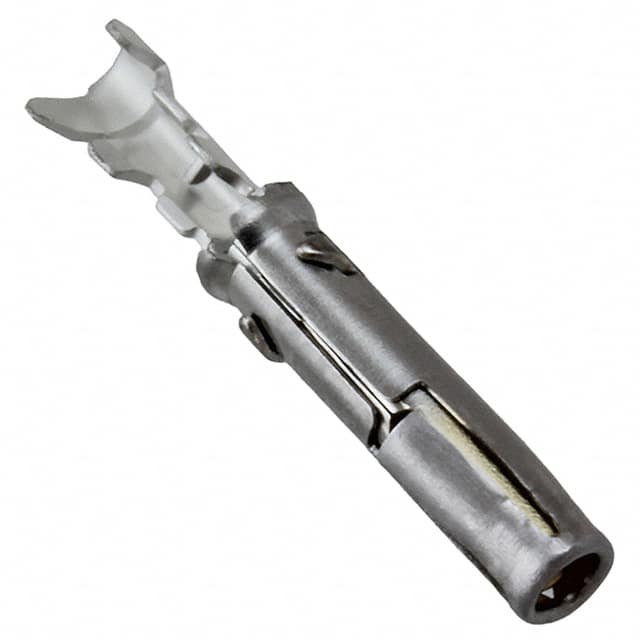

The SC20ML1S31 is a stamped female socket contact from Souriau-Sunbank by Eaton, part of the Trim Trio SC-M series. It is designed for 20-22 AWG wire with a wire insulation diameter range of 1.20/2.10 mm and a strip length of 4.0 mm. The contact is made of copper alloy with a gold flash finish, providing reliable electrical performance.
Electrical ratings include a current rating of 13 A, a maximum contact resistance of 6 mOhm, and an operating voltage of 750 V RMS. Mechanical characteristics include a minimum contact retention force of 65 N, a maximum insertion force of 3.5 N, and a minimum withdrawal force of 0.55 N.
The contact uses a crimp termination style and is supplied loose in a plastic bag with a standard package quantity of 100 pieces. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.81 | $0.81 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.66 | $0.66 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.57 | $0.57 |
| 2,000+ | $0.55 | $0.55 |
| 5,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20-22 AWG.
13 A.
750 V RMS.
Gold flash.
Crimp.
Minimum 65 N.
