| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Voltage Range | |
| Width |

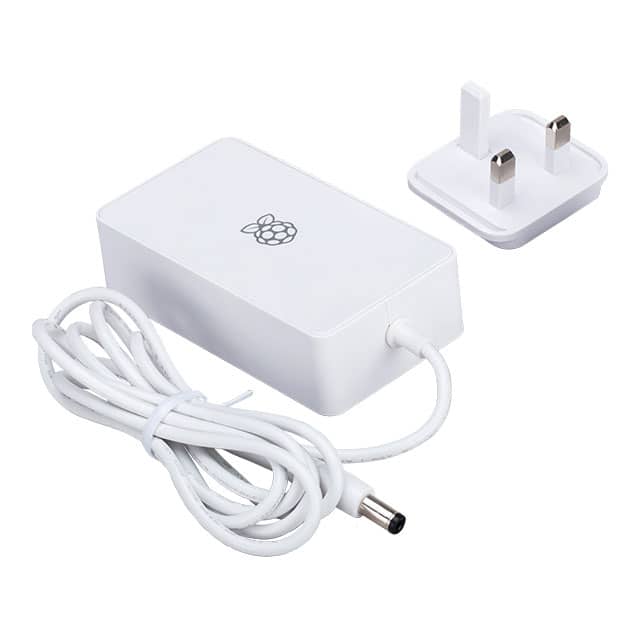

The Raspberry Pi SC0746 is a versatile 48W AC/DC wall mount power supply designed for various applications. It delivers a stable 8.0V DC output with a nominal current of 6.0A, capable of powering demanding projects.
This adapter operates within a wide input voltage range of 100-240Vac and features a 50/60Hz frequency. Its efficiency is rated at a minimum of 87.77%. The output is delivered via a 1.5-meter cable with a 5.5mm x 2.1mm barrel connector, featuring a positive center pin.
Designed for convenience, the SC0746 has a compact form factor with dimensions of 92.0mm x 51.0mm x 25.5mm. It includes essential protections such as short circuit, overcurrent, and overvoltage protection. The operating ambient temperature range is from 0°C to 40°C.
This adapter is suitable for ITE (Commercial) applications and comes with a BS 1363 input connector for use in the United Kingdom. It also boasts a low no-load power consumption of just 100mW.
0°C to 40°C.
8V at 6A, for a maximum power of 48W.
100-240Vac, with operating range 96-264Vac.
87.77%.
A 2.1mm inner diameter x 5.5mm outer diameter barrel plug, positive center, with a 1.5m cable.
0.1W.
