| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Voltage Range | |
| Isolation Resistance | |
| Isolation Voltage | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Output Voltage Accuracy | |
| Power (Watts) | |
| Ripple & Noise | |
| SVHC Present | |
| Short circuit protection | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| input_current (Typical @ At full load) | |
| input_current (Typical @ At no load) | |
| ripple_and_noise_p_p (Maximum @ 20 MHz bandwidth, over line, load & temp) | |
| ripple_and_noise_p_p (Typical @ 20 MHz bandwidth) |

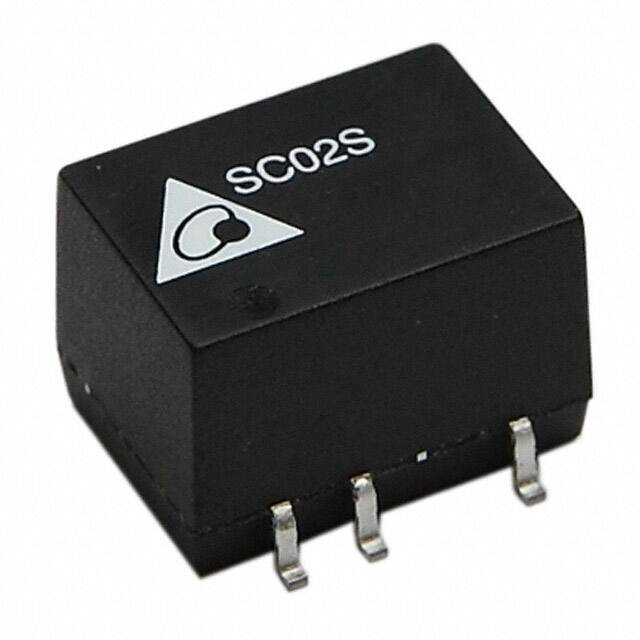

The Delta Electronics SC02S2405A is a miniature, isolated 2W DC-DC converter in an SMD package. It accepts a nominal 24V input (21.6V to 26.4V range) and provides a regulated 5V output at up to 400mA. The converter offers 1000VDC input-to-output isolation and includes short circuit protection with a 0.5s duration limit.
Electrical performance includes a typical efficiency of 78%, output voltage accuracy of ±1.5% typical (±4% maximum), and line regulation of ±1.2% typical (±1.5% maximum). Ripple and noise are specified at 100mVp-p typical (200mVp-p maximum) with 15mVrms typical. The device operates over a -40°C to +85°C temperature range with a temperature coefficient of ±0.01%/°C typical.
The converter is housed in an 8-SMD Module with 5 leads, measuring 12.7mm x 9.3mm x 8.9mm. It is surface mountable and is RoHS3 compliant and lead-free. The SC02S2405A is suitable for medical and other applications requiring isolated power in a compact footprint.
The input voltage range is 21.6V to 26.4V (nominal 24V).
It provides a regulated 5V output at up to 400mA (2W).
The isolation voltage is 1000VDC for 60 seconds.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant and lead-free.
It comes in an 8-SMD Module with 5 leads, surface mount package measuring 12.7mm x 9.3mm x 8.9mm.
Yes, it includes short circuit protection with a maximum duration of 0.5 seconds.
