| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating | |
| Width |

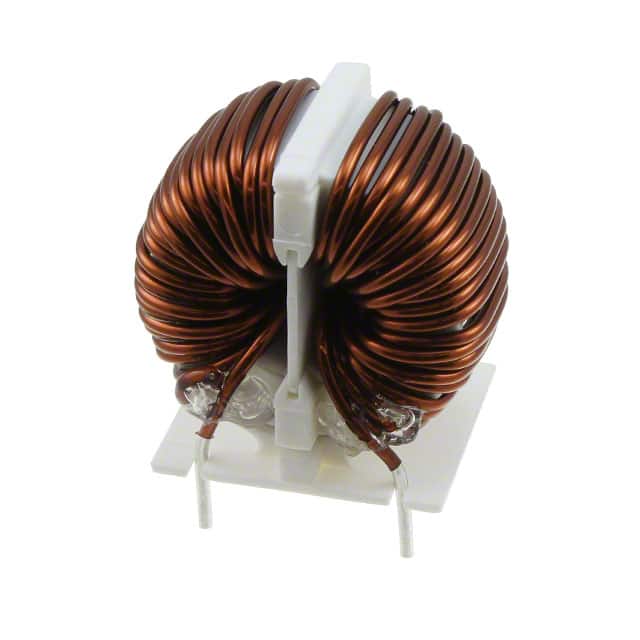

This Yageo SC-10-30J is a common mode choke designed for power line filtering applications. It offers a nominal inductance of 3 mH at 100 kHz and a maximum current rating of 10A, with a maximum DC resistance of 30 mOhm.
The choke is rated for a voltage of 250V and operates within a temperature range of -25°C to 120°C. Its mechanical dimensions include a length of 34.00mm, a width of 24.00mm, and a maximum height of 33.00mm. It features 2 lines and is designed for Through Hole mounting.
This component is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1. The package type is described as Vertical with 4 PC Pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250V.
Through Hole, Vertical, 4 PC Pin.
-25°C to 120°C.
3 mH at 100 kHz.
10A maximum.
30mOhm maximum.
2 lines.
