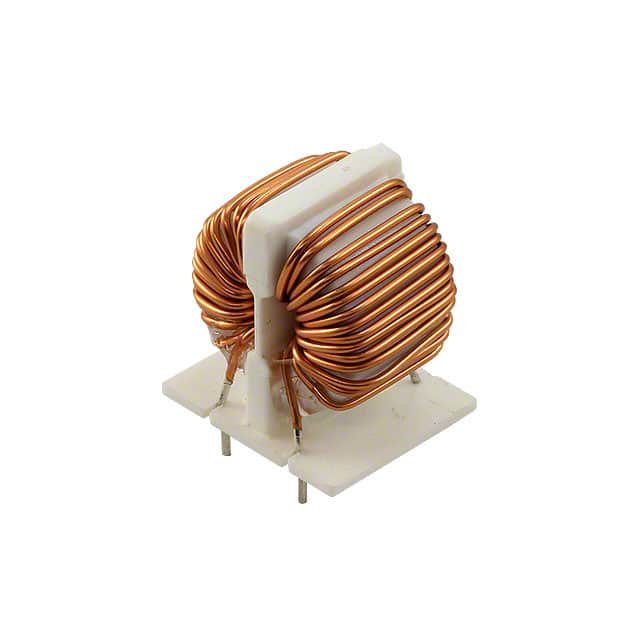

The KEMET SC-05-10J is a Common Mode Choke designed for AC line filtering applications. It offers a nominal inductance of 1 mH and a rated current of 5A.
This component operates with a rated voltage of 250VAC/VDC and has a withstanding voltage of AC 2400V for 2 seconds between lines. The insulation resistance is specified as greater than 100MΩ at 500VDC between lines. The operating temperature range is from -25°C to 120°C, with a thermal class of A (105°C) or E (120°C).
The SC-05-10J features a Through Hole mounting type and a vertical, 4 PC Pin package. Its dimensions are approximately 25.0mm in length, 20.0mm in width, and a maximum height of 27.00mm. The DC resistance is a maximum of 50mΩ.
This common mode choke is suitable for applications in consumer electronics and general AC line filtering where noise suppression is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $6.00 |
| 10+ | $3.50 | $5.50 |
| 100+ | $3.00 | $5.00 |
| 1,000+ | $2.50 | $4.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 mH, measured at 100 kHz with 1mA current.
The maximum rated current is 5A.
The maximum DC resistance is 50 mOhm.
The rated voltage is 250VAC/VDC.
The operating temperature range is -25°C to 120°C.
It is a Through Hole component.
The dimensions are 25.0mm in length, 20.0mm in width, and 27.0mm in maximum height.
