| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,402,500 pcs
|
1402500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
12,020 pcs
|
12020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage (Typical/Maximum @ I_F=1 A) | |
| Lead Style | |
| Maximum Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Peak Reverse Energy | |
| Repetitive Peak Reverse Voltage | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

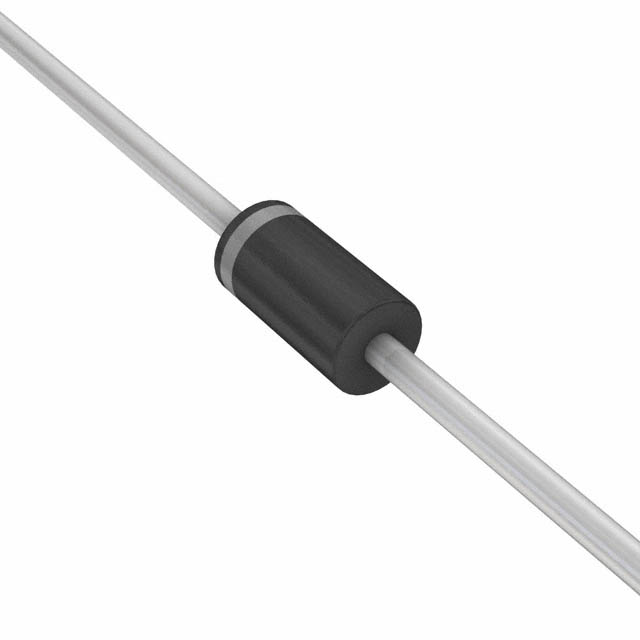

The SBYV26C-E3/54 is a glass-passivated ultrafast plastic rectifier diode designed for high-frequency rectification and freewheeling applications in switching mode converters and inverters. Manufactured by Vishay General Semiconductor, it features a repetitive peak reverse voltage of 600V and an average forward current of 1A (at lead temperature 85°C with 0.375" lead length).
The diode exhibits a typical forward voltage of 1.3V at 1A and an ultrafast reverse recovery time of 30 ns, minimizing switching losses and improving efficiency. It can handle a peak forward surge current of 30A (10 ms single half sine-wave) and operates over a junction temperature range of -65°C to 175°C.
The device is packaged in a DO-204AL (DO-41) molded plastic over glass body, with through-hole mounting and matte tin plated leads. It is RoHS-compliant (E3 suffix) and the molding compound meets UL 94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
| 10+ | $0.95 | $0.95 |
| 100+ | $0.63 | $0.63 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.40 | $0.40 |
| 2,500+ | $0.38 | $0.38 |
| 5,500+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage (VRRM) is 600V.
The average forward current is 1A at a lead temperature of 85°C with 0.375" lead length.
Typical forward voltage is 1.3V at 1A. Maximum forward voltage is 2.5V at 1A per some sources; verify test conditions.
The reverse recovery time is 30 ns.
It is housed in a DO-204AL (DO-41) axial through-hole package.
The maximum junction temperature is 175°C.
The peak forward surge current is 30A for a 10 ms single half sine-wave.
