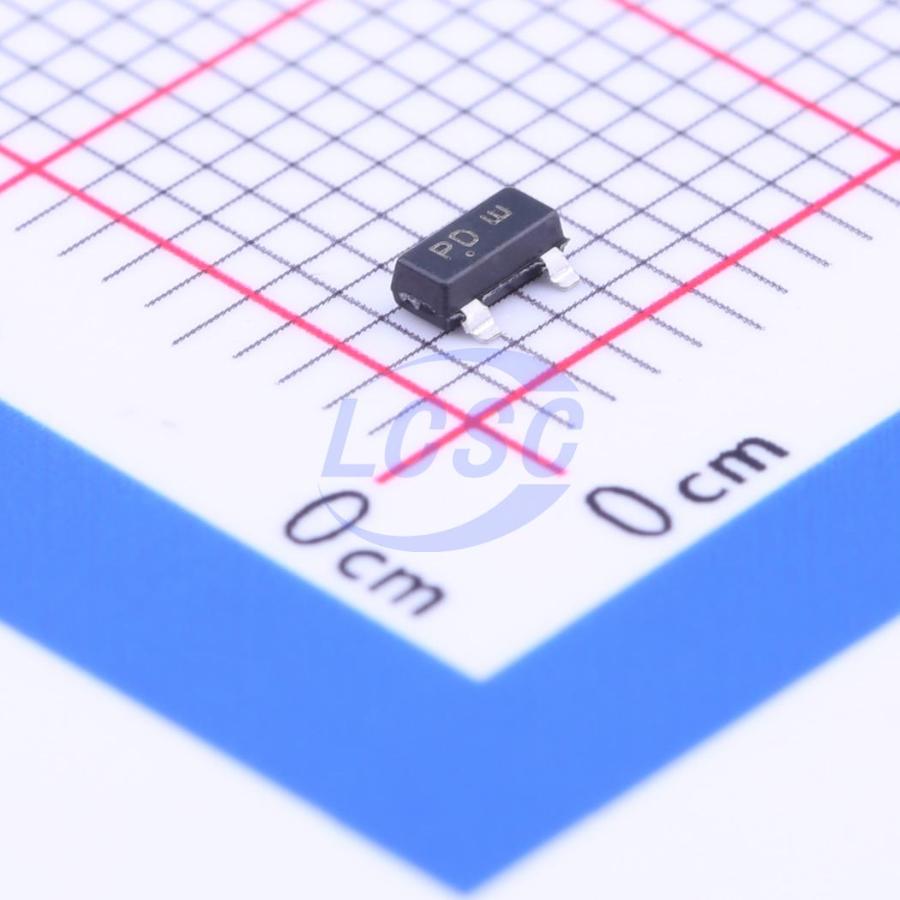

SBSS84LT1G The SBSS84LT1G is a P-Channel MOSFET from ON Semiconductor. It features a 50V drain-to-source voltage and a 130mA continuous drain current.
Mfr Part #:

SBSS84LT1G

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The SBSS84LT1G is a P-Channel MOSFET from ON Semiconductor. It features a 50V drain-to-source voltage and a 130mA continuous drain current.
✓ Total Stock: 3,076 pcs
$ Price Range: $0.99

SBSS84LT1G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SBSS84LT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

SBSS84LT1G Description

Short technical summary and product information.

The ON Semiconductor SBSS84LT1G is a P-Channel MOSFET designed for various electronic applications. It offers a drain-to-source voltage of 50V and a continuous drain current of 130mA at 25°C.



Key electrical characteristics include a maximum static drain-to-source on-resistance of 10 Ohms at 100mA and 5V gate-source voltage. The gate-source threshold voltage is a maximum of 2V at 250µA. Input capacitance is rated at 36pF at 5V, and gate charge is 2.2nC at 10V.



This MOSFET is housed in a compact SOT-23-3 (TO-236) surface mount package, saving valuable board space. It operates within a temperature range of -55°C to 150°C.



The device is RoHS3 compliant and has an MSL rating of 1.

SBSS84LT1G Quick Information

Product Type: MOSFET
Canonical Name: SBSS84LT1G P-Channel MOSFET
Subcategory: P-Channel

SBSS84LT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SBSS84LT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SBSS84LT1G Features

  • P-Channel MOSFET technology.
  • 50V drain-to-source voltage.
  • 130mA continuous drain current.
  • 10 Ohm max Rds(on) at 100mA, 5V.
  • SOT-23-3 surface mount package.

SBSS84LT1G Applications

  • Suitable for general switching applications.
  • Ideal for low-power circuit designs.
  • Used in space-constrained electronics.
  • Power management functions.

SBSS84LT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the SBSS84LT1G?

-50 Vdc.

What package does the SBSS84LT1G come in?

Surface mount SOT-23-3 (TO-236).

What is the operating junction temperature range?

-55°C to 150°C.

What is the typical on-resistance of the SBSS84LT1G?

10 Ohms maximum at VGS = 5V and ID = 100mA.

What is the gate threshold voltage range?

-0.9 Vdc to -2.0 Vdc.

What is the gate charge of the SBSS84LT1G?

2.2 nC at VGS = 10 V.

What is the input capacitance?

36 pF at VDS = 5 V.
