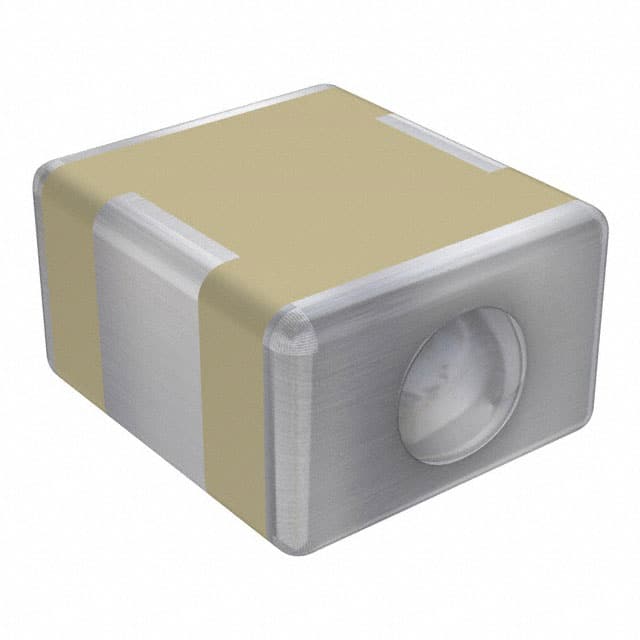

SBSMC5000103MXT The Knowles Syfer SBSMC5000103MXT is a 10000 pF feed-through capacitor rated for 500V. It features a surface mount 2220 package and a current rating of 20A.
Mfr Part #:

SBSMC5000103MXT

Available from 1 distributors
Mfr Name: Knowles / Syfer
Knowles / Syfer
The Knowles Syfer SBSMC5000103MXT is a 10000 pF feed-through capacitor rated for 500V. It features a surface mount 2220 package and a current rating of 20A.
✓ Total Stock: 500 pcs
$ Price Range: $0.10

SBSMC5000103MXT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SBSMC5000103MXT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Current
Height
Height (Max)
Insertion Loss
Length
Mounting Type
Operating Temperature
SVHC Present
Temperature Coefficient
Tolerance
Voltage
Width
View Similar Products (0)

SBSMC5000103MXT Description

Short technical summary and product information.

The Knowles Syfer SBSMC5000103MXT is a feed-through capacitor designed for filtering applications. It offers a capacitance of 10000 pF (0.01uF) with a voltage rating of 500V and a tolerance of ±20%.



This capacitor utilizes the X7R temperature coefficient, ensuring stability across its operating temperature range of -55°C to 125°C. It has a significant current rating of 20A and an insertion loss of 50dB at 100MHz, making it suitable for demanding applications.



The component is housed in a 2220 (5750 Metric) package with 3 PC pads and is designed for surface mounting. Its dimensions are 5.70mm in length and 5.00mm in width, with a maximum height of 3.38mm.



Compliance information indicates RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is 1 Unlimited.

SBSMC5000103MXT Quick Information

Product Type: Feed Through Capacitor
Series: SBSM
Canonical Name: Knowles / Syfer SBSMC5000103MXT Feed Through Capacitor
Subcategory: Feed Through

SBSMC5000103MXT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SBSMC5000103MXT Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

SBSMC5000103MXT Features

  • 10000 pF capacitance, 500V rating.
  • 20A current handling capability.
  • X7R temperature coefficient for stability.
  • Surface mount 2220 (5750 Metric) package.
  • 50dB insertion loss at 100MHz.

SBSMC5000103MXT Applications

  • Ideal for signal filtering.
  • Suitable for industrial applications.
  • Used in automotive systems.
  • Effective in communications sectors.
  • High-performance signal processing.

SBSMC5000103MXT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the SBSMC5000103MXT?

The capacitance is 10000 pF.

What is the voltage rating for the SBSMC5000103MXT?

The voltage rating is 500V.

What is the operating temperature range of the SBSMC5000103MXT?

The operating temperature range is -55°C to 125°C.

What is the RoHS status of the SBSMC5000103MXT?

The RoHS status is ROHS3 Compliant.

What is the package type for the SBSMC5000103MXT?

The package type is 2220 (5750 Metric), 3 PC Pad.

What is the current rating of the SBSMC5000103MXT?

The current rating is 20 A.
