| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approximate Resonant Frequency | |
| Attenuation Value | |
| Capacitance | |
| Current | |
| DWV | |
| Dielectric | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Insertion Loss (Typical @ 1 GHz) | |
| Insertion Loss (Typical @ 100 MHz) | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Packing | |
| Rated Voltage | |
| Technology | |
| Type | |
| Values | |
| Voltage | |
| Width |

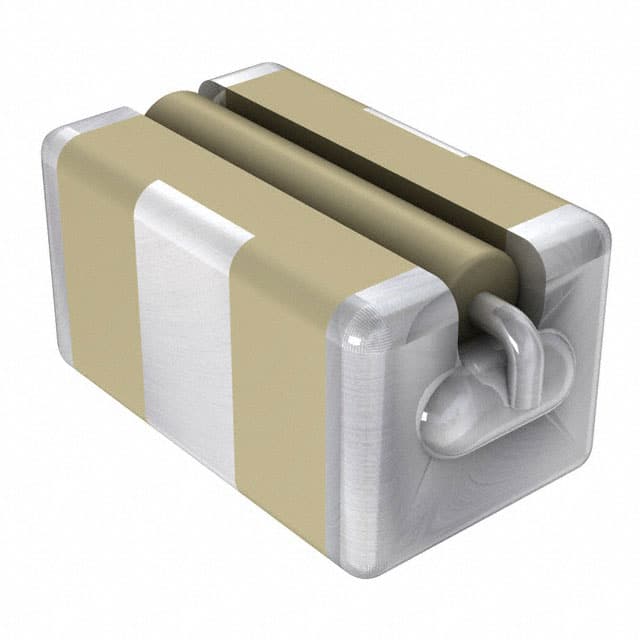

This Knowles Syfer SBSGP5000473MXT is a surface mount EMI filter featuring an LC (Pi) configuration. It offers a capacitance value of 0.047µF and is rated for a maximum voltage of 500Vdc, with a current handling capability of 5A. The filter is a 3rd order type, designed for general purpose applications.
The component comes in an 1812 (4532 Metric) package with 3 PC pads, suitable for surface mounting. Its dimensions are 4.55mm in length and 3.20mm in width, with a height of 2.64mm. The filter provides a typical insertion loss of 36dB at 100MHz and 39dB at 1GHz, with a resonant frequency of 28MHz. It does not include ESD protection.
This filter is suitable for applications requiring noise suppression in electronic circuits. The surface mount design facilitates integration into compact PCB layouts. The LC Pi topology is effective in attenuating a wide range of frequencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the SBSGP5000473MXT EMI filter is 0.047µF.
The SBSGP5000473MXT filter has a maximum voltage rating of 500Vdc.
The SBSGP5000473MXT EMI filter can handle a current of 5A.
The SBSGP5000473MXT EMI filter is supplied in an 1812 (4532 Metric) package.
The typical insertion loss of the SBSGP5000473MXT filter at 100MHz is 36dB.
The approximate resonant frequency of the SBSGP5000473MXT EMI filter is 28MHz.
