SBRD110T4G The SBRD110T4G is a Schottky diode from Semiconductor Components. It features a 200V reverse voltage rating and a 10A average rectified current.
Mfr Part #:

SBRD110T4G

Available from 1 distributors
Mfr Name: Semiconductor Components
Semiconductor Components
The SBRD110T4G is a Schottky diode from Semiconductor Components. It features a 200V reverse voltage rating and a 10A average rectified current.
✓ Total Stock: 723 pcs
$ Price Range: $0.25

SBRD110T4G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
723 pcs
On Request
723 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SBRD110T4G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diode Configuration
Mounting Type
SVHC Present
Speed
Technology
View Similar Products (0)

SBRD110T4G Description

Short technical summary and product information.

The SBRD110T4G is a Schottky diode manufactured by Semiconductor Components. This component is designed for applications requiring a 200V DC reverse voltage rating and can handle an average rectified current of 10A per diode. It operates with a forward voltage of 900mV at 10A and has a low reverse leakage current of 1mA at 200V.

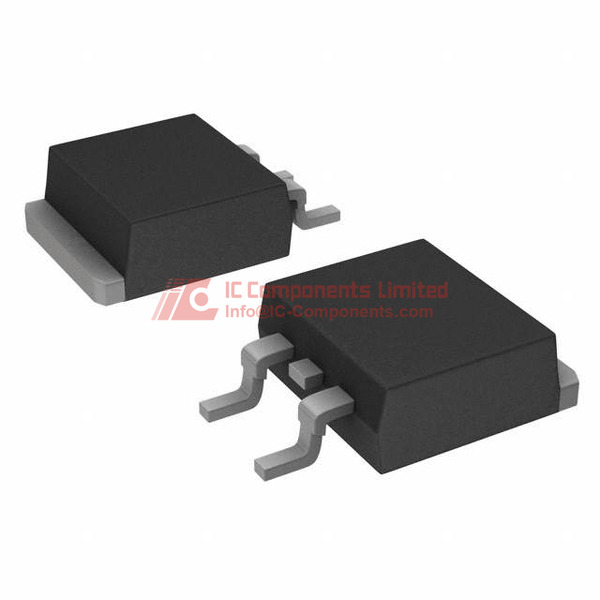

The diode is configured as a single pair of common cathodes. It is suitable for surface mounting and comes in a D2PAK package, also known as TO-263-3. The operating junction temperature range is from -65°C to 150°C.



This diode is part of the Discrete Semiconductor Products category, specifically for rectifiers. Its Schottky technology ensures fast recovery times, making it efficient for various power supply and rectification circuits.

SBRD110T4G Quick Information

Product Type: Diode
Series: SBRD
Canonical Name: SBRD110T4G Schottky Diode Array
Subcategory: Rectifier

SBRD110T4G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SBRD110T4G Estimated Pricing

Qty Low High
1+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

SBRD110T4G Features

  • 200V maximum DC reverse voltage.
  • 10A average rectified current.
  • Schottky technology for fast switching.
  • Surface mount D2PAK package.
  • Wide operating temperature range.

SBRD110T4G Applications

  • Used in power supply rectification.
  • Suitable for switching applications.
  • Ideal for voltage clamping circuits.
  • General purpose diode applications.

SBRD110T4G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the SBRD110T4G?

200V.

What is the average rectified current per diode?

10A.

What is the forward voltage drop at 10A?

900mV.

What is the package type of the SBRD110T4G?

D2PAK (TO-263).

What is the diode configuration?

1 pair common cathode.

What technology is used in the SBRD110T4G?

Schottky.

What is the operating junction temperature range?

-65°C to 150°C.
