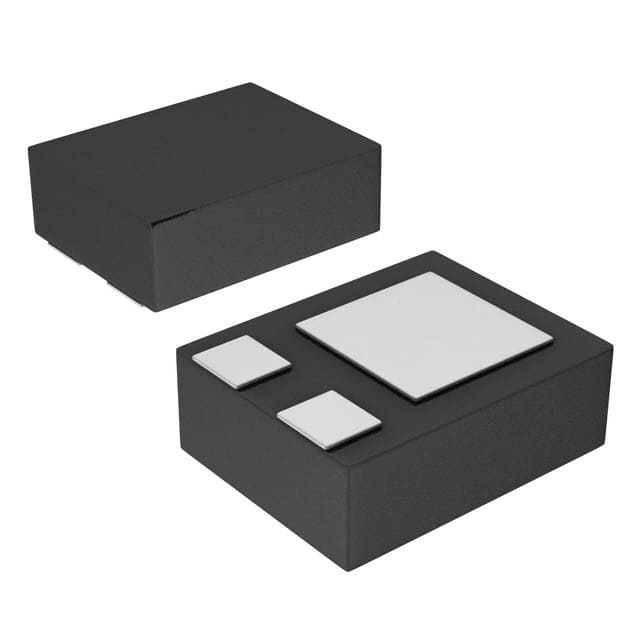

The SBR1U40LP-7 is a 1.0A, 40V Super Barrier Rectifier (SBR) from Diodes Incorporated. It utilizes patented Super Barrier Rectifier technology to achieve ultra low forward voltage drop while maintaining excellent high temperature stability.
Electrical characteristics include a maximum reverse voltage of 40V and average rectified current of 1.0A. Forward voltage is typically 0.46V at 1.0A and 0.39V at 0.5A. Non-repetitive peak surge current is 5A (8.3ms) and 2.6A (15s). Operating junction temperature range is -65°C to +150°C.
The device is housed in a compact X1-DFN1411-3 surface-mount package, weighing approximately 2.35mg. It is RoHS compliant, halogen and antimony free, and MSL Level 1. The part is supplied in tape and reel packaging with 3000 units per reel.
Suitable for low voltage, high efficiency rectification in power supplies, DC-DC converters, and reverse polarity protection circuits. The fast switching capability makes it ideal for high frequency applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.26 | $0.26 |
| 25+ | $0.22 | $0.22 |
| 50+ | $0.19 | $0.19 |
| 100+ | $0.17 | $0.17 |
| 3,000+ | $0.08 | $0.08 |
| 6,000+ | $0.07 | $0.07 |
| 9,000+ | $0.07 | $0.07 |
| 15,000+ | $0.06 | $0.06 |
| 21,000+ | $0.06 | $0.06 |
| 30,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (VRRM) is 40V at TA = 25°C.
The maximum average rectified current (IO) is 1.0A for single phase, half wave, 60Hz, resistive or inductive load.
At IF = 1.0A and TJ = 25°C, the forward voltage is typically 0.46V with a maximum of 0.49V.
The device is packaged in a surface-mount X1-DFN1411-3 case (also referred to as 3-UDFN).
The operating junction temperature range is -65°C to +150°C.
Yes, it is RoHS compliant and also halogen and antimony free (Green device).
The non-repetitive peak forward surge current (IFSM) is 5A for an 8.3ms single half sine-wave and 2.6A for a 15s single half sine-wave.
