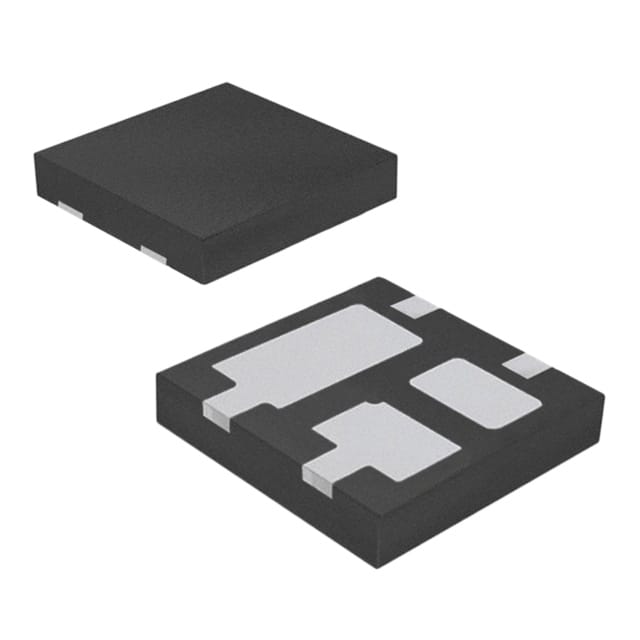

SBR05M100BLP-7 The SBR05M100BLP-7 is a 100V, 0.5A single phase super barrier bridge rectifier from Diodes Incorporated. It features low forward voltage drop of 0.73V and low reverse leakage, packaged in a U-DFN3030-4 surface mount package.
Mfr Part #:

SBR05M100BLP-7

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The SBR05M100BLP-7 is a 100V, 0.5A single phase super barrier bridge rectifier from Diodes Incorporated. It features low forward voltage drop of 0.73V and low reverse leakage, packaged in a U-DFN3030-4 surface mount package.
✓ Total Stock: 948,020 pcs
$ Price Range: $0.31 - $1.39

SBR05M100BLP-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
928,020 pcs
On Request
928020 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SBR05M100BLP-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Termination Finish
Voltage
View Similar Products (0)

SBR05M100BLP-7 Description

Short technical summary and product information.

The SBR05M100BLP-7 is a 0.5A super barrier rectifier (SBR) bridge rectifier designed for low forward voltage drop and high temperature stability. It consists of four diodes in a full bridge configuration housed in a low profile U-DFN3030-4 package. Key electrical characteristics include a peak repetitive reverse voltage of 100V, an average rectified output current of 500mA, a maximum forward voltage of 0.73V, and a maximum reverse leakage current of 25µA. The device is rated for a non-repetitive peak forward surge current of 8A (8.3ms). The operating junction temperature range is -55°C to 150°C. The package is surface mount with NiPdAu over copper termination finish, and it is RoHS compliant, lead-free, and halogen-free. Moisture sensitivity level is 1. Standard packaging is tape and reel with 3000 pieces per reel. This bridge rectifier is suitable for applications requiring small footprint and low profile, such as power supplies and AC/DC converters.

SBR05M100BLP-7 Quick Information

Product Type: Bridge Rectifier
Canonical Name: SBR05M100BLP-7 100V 0.5A Single Phase Bridge Rectifier, U-DFN3030-4
Subcategory: Single Phase Bridge Rectifier

SBR05M100BLP-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free

SBR05M100BLP-7 Estimated Pricing

Qty Low High
1+ $1.39 $1.39
10+ $0.88 $0.88
25+ $0.74 $0.74
50+ $0.65 $0.65
100+ $0.58 $0.58
3,000+ $0.35 $0.35
9,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

SBR05M100BLP-7 Features

  • 100V peak repetitive reverse voltage.
  • 500mA average rectified output current.
  • 0.73V maximum forward voltage.
  • 25µA maximum reverse leakage.
  • U-DFN3030-4 surface mount package.

SBR05M100BLP-7 Applications

  • Used as bridge rectifier in compact power supplies.
  • Suitable for AC/DC converter circuits.
  • Ideal for low profile and small footprint designs.
  • High temperature stability applications.

SBR05M100BLP-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the SBR05M100BLP-7?

100V.

What is the average rectified output current?

500mA (0.5A).

What is the maximum forward voltage drop?

0.73V.

What is the package type?

U-DFN3030-4 surface mount package.

What is the non-repetitive peak forward surge current?

8A.

What is the operating temperature range?

-55°C to 150°C.

Is the device RoHS compliant?

Yes, fully RoHS compliant.
