| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

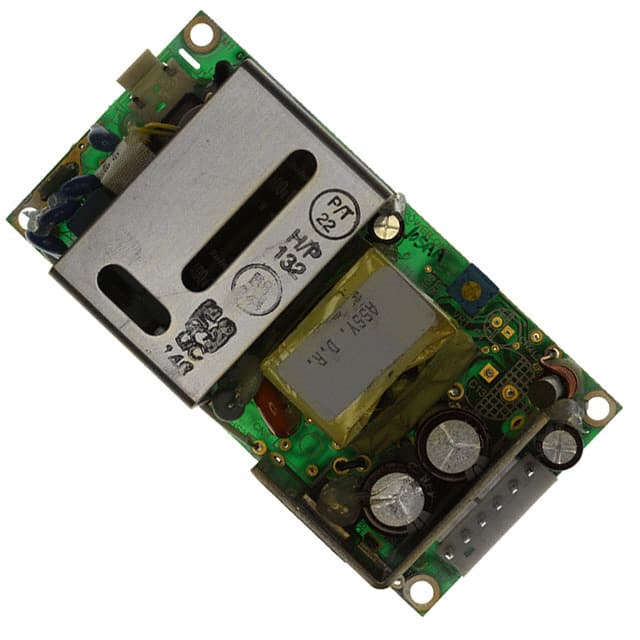

The SBLP65-1024G from Bel Power Solutions is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 3.1A, providing 60W of power (65W with forced air).
Key electrical specifications include a wide input voltage range of 90 to 264 VAC and an efficiency of 85%. The converter offers features such as adjustable output and remote sense, along with universal input capability. It provides 4.242 kV of isolation voltage.
Mechanically, the unit is chassis mountable with dimensions of 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm). The operating temperature range is -10°C to 70°C with derating. The part is supplied in bulk packaging.
Compliance includes RoHS3, MSL 1 Unlimited, and REACH Unaffected status. Approval agencies are CB and CE.
90 to 264 VAC.
Open frame, chassis mount, bulk packaging.
-10°C to 70°C with derating.
24V.
3.1A.
60W convection, 65W forced air.
85%.
