| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

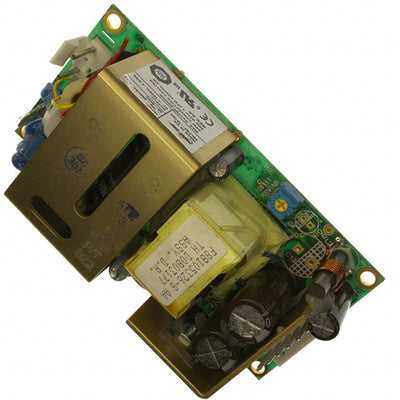

The Bel Power Solutions SBLP65-1015G is an AC/DC converter designed for ITE (Commercial) applications. It provides a 15V output voltage and a 5A output current, delivering a total power of 60W (65W with forced air).
Key electrical features include adjustable output, remote sense, and universal input, with an efficiency rating of 85%. The operating temperature range is -10°C to 70°C with derating.
Mechanically, this converter is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 33.0mm. It is approved by CB and CE.
Compliance includes RoHS3 Compliant, REACH Unaffected, and MSL 1 Unlimited. The standard package quantity is 50 units.
The output voltage is 15V.
The output current is 5A.
The power rating is 60W, or 65W with forced air.
Key features include adjustable output, remote sense, and universal input.
The operating temperature range is -10°C to 70°C (With Derating).
The dimensions are 101.6mm x 50.8mm x 33.0mm.
It is a chassis mount type.
