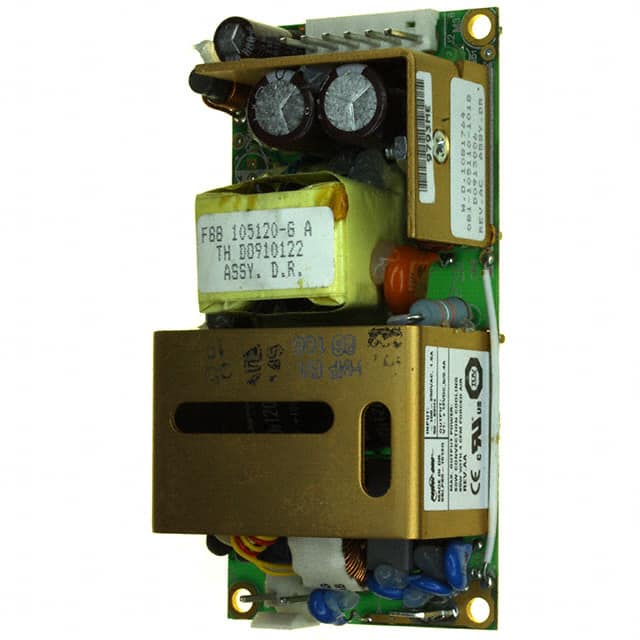

The Bel Power Solutions SBLP65-1012G is an AC-DC power supply module designed for ITE (Commercial) applications. It provides a single 12V output with a convection rating of 60W, expandable to 65W with forced air cooling.
This module boasts a typical efficiency of 85% and operates within a wide input voltage range of 90-264 VAC. Its compact dimensions of 4.00" x 2.00" x 1.30" make it suitable for space-constrained designs. The open frame, chassis mount type facilitates integration into various systems.
Key features include adjustable output, remote sense, and universal input. The unit is designed to meet safety agency standards including UL60960-1, CSA 22.2 No. 60950-1-03, and TUV EN60950/IEC 60950-1, along with FCC & CISPR 22 Class "B" conducted EMI compliance. It also adheres to various EN 61000-4 standards for ESD, RF, Fast Transient/Burst, and Surge.
The SBLP65 series is described as RoHS compliant and operates within a temperature range of -10°C to 70°C with derating.
The nominal output voltage is 12 VDC.
The maximum output current under convection cooling is 5 A.
The peak output current is 6.25 A.
The total regulation is ± 2 %.
The total ripple and noise is 5 mV pk-pk.
The power rating is 60W, or 65W with forced air cooling.
The typical efficiency is 85%.
The operating temperature range is -10°C to 70°C, with derating.
The dimensions are 101.6mm (4.00") L x 50.8mm (2.00") W x 33.0mm (1.30") H.
It supports chassis mount.
Safety agency approvals are pending for UL60960-1, CSA 22.2 No. 60950-1-03, and TUV EN60950/IEC 60950-1.
It meets FCC & CISPR 22, Class "B" standards for conducted EMI.
