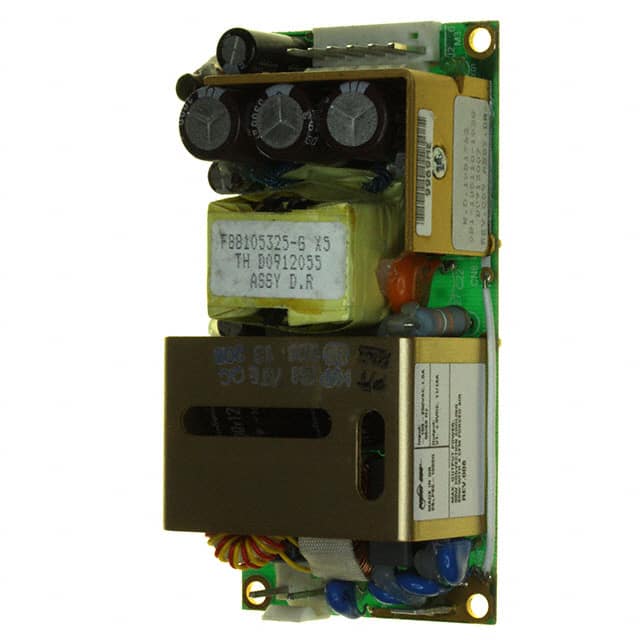

The Bel Power Solutions SBLP65-1005G is an open frame AC DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90 to 264 VAC and delivers a nominal output of 5VDC at a maximum of 12A, providing up to 60W of power (65W forced air).
Key electrical specifications include an efficiency of 85% and an isolation voltage of 4.242kV. The converter supports adjustable output, remote sense, and has a minimum load requirement. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating.
The dimensions of the unit are 101.6mm x 50.8mm x 33.0mm. Approvals include CB and CE certifications. This model is suitable for various commercial applications requiring a reliable power conversion solution.
The SBLP65-1005G provides a single output of 5 VDC.
The maximum output current is 12A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 85%.
The isolation voltage is 4.242kV.
This converter uses chassis mount.
