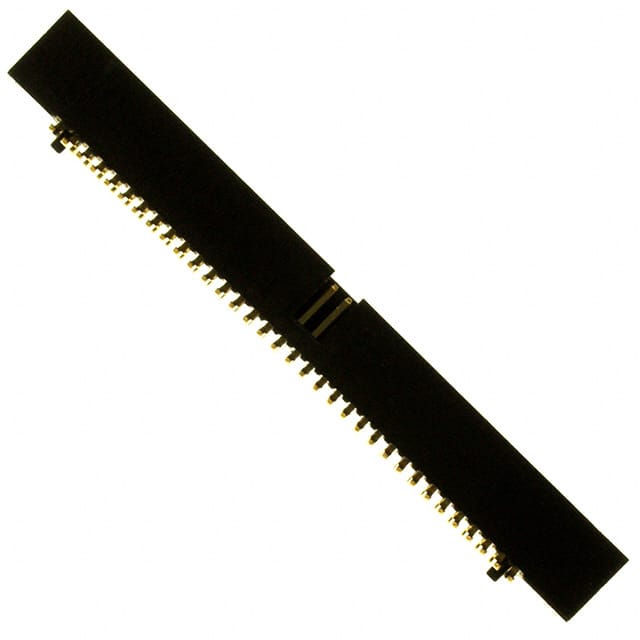

This is a 68-position, 2-row, 1.27mm pitch surface mount shrouded header from Sullins Connector Solutions. It is part of the SBH41 series, designed for board-to-cable/wire applications. The connector features a 4-wall shrouded design with push-pull fastening, providing robust mating and protection.
Key specifications: The header has 68 positions (all loaded), with a pitch of 1.27mm and row spacing of 2.54mm. Contacts are made of brass with gold flash finish, square shape. Insulation is black polyamide (PA9T/Nylon 9T) with UL94 V-0 flammability rating. Insulation height is 5.80mm. Features include board guide and keying slot.
Electrical and thermal: Rated current 1A, contact resistance 20 mOhm max, dielectric withstanding voltage 500 VAC, insulation resistance 5000 MOhm. Operating temperature -40°C to 105°C. Processing temperature up to 230°C for 60 seconds or 260°C for 10 seconds.
Mounting: Surface mount with solder termination. The specific variant includes guide posts (SP suffix). Mates with SFH41 series. Suitable for applications requiring high-density interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.85 | $3.85 |
| 11+ | $3.25 | $3.25 |
| 110+ | $2.76 | $2.76 |
| 506+ | $2.48 | $2.48 |
| 1,001+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
68 positions in 2 rows, all loaded.
1.27mm (0.050").
1A per contact.
Surface mount (SMD) with solder termination.
-40°C to 105°C.
Gold flash over brass.
Black polyamide (PA9T/Nylon 9T) with UL94 V-0 rating.
