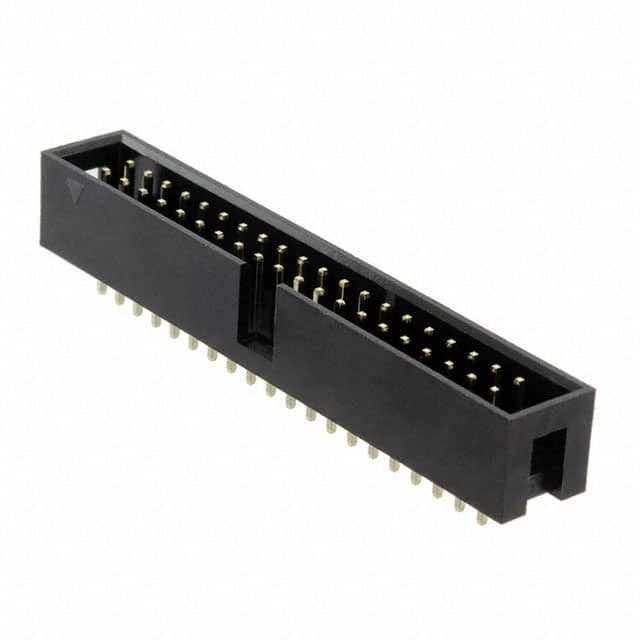

The Sullins SBH11-PBPC-D20-ST-BK is a 40-position, dual-row shrouded box header from the SBH11 series. It features a 2.54mm (0.100") pitch and row spacing, with straight through-hole termination for reliable PCB mounting. The header is designed for board-to-board or cable-to-board applications and mates with SFH11, SFH210, and SFH213 series receptacles.
Key specifications include a current rating of 3A, contact resistance of 20 milliohms maximum, dielectric withstanding voltage of 1000VAC, and insulation resistance of 5000 megohms minimum. The contacts are made of brass with a gold flash finish, and the insulator is black PBT with a UL94 V-0 flammability rating.
The operating temperature range is -40°C to +105°C, with processing temperatures up to 230°C for 60 seconds or 260°C for 10 seconds. The header includes a keying slot for polarization and is RoHS compliant. The 4-wall shrouding provides protection for the male pins and ensures proper mating alignment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.56 | $0.56 |
| 100+ | $0.48 | $0.48 |
| 500+ | $0.43 | $0.43 |
| 1,000+ | $0.41 | $0.41 |
| 5,000+ | $0.36 | $0.36 |
| 10,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions in 2 rows.
The pitch is 2.54mm (0.100") and row spacing is also 2.54mm.
The current rating is 3A.
The dielectric withstanding voltage is 1000VAC.
Through hole mounting with solder termination.
-40°C to +105°C.
Brass contacts with gold flash finish.
