| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

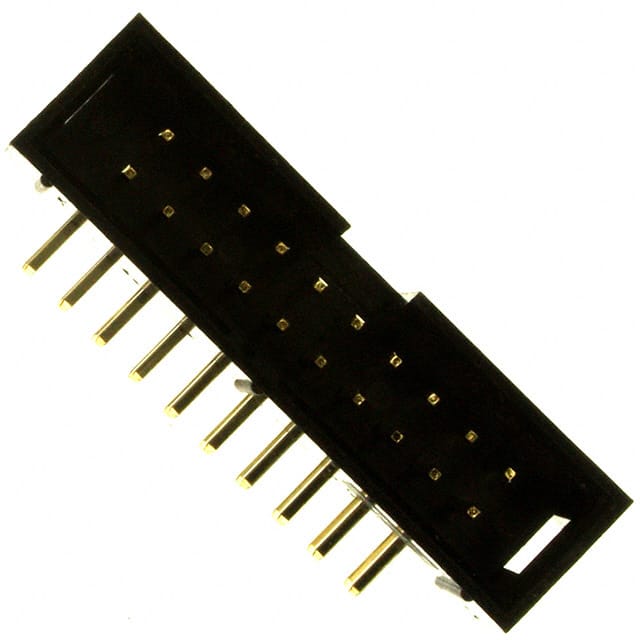

The Sullins Connector Solutions SBH11-PBPC-D10-RA-BK is a 20 position, dual row, shrouded box header with a 2.54mm pitch and 2.54mm row spacing. It features a right angle through hole mounting style with solder termination, making it suitable for board-to-board or cable applications. The header is fully shrouded with a 4-wall design and includes a keying slot for polarization.
The contacts are made of brass with a gold flash finish, providing reliable electrical performance. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header is rated for 3A current, with a maximum contact resistance of 20 milliohms and a minimum insulation resistance of 5000 megohms. It can withstand 1000VAC dielectric strength and operates over a temperature range of -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
| 10+ | $0.74 | $0.74 |
| 100+ | $0.63 | $0.63 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.54 | $0.54 |
| 5,000+ | $0.48 | $0.48 |
| 10,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches) with the same row spacing.
The current rating is 3 Amps.
It is a through hole, right angle mounting type with solder termination.
The operating temperature range is -40°C to +105°C.
