SBH11-PBPC-D07-ST-BK

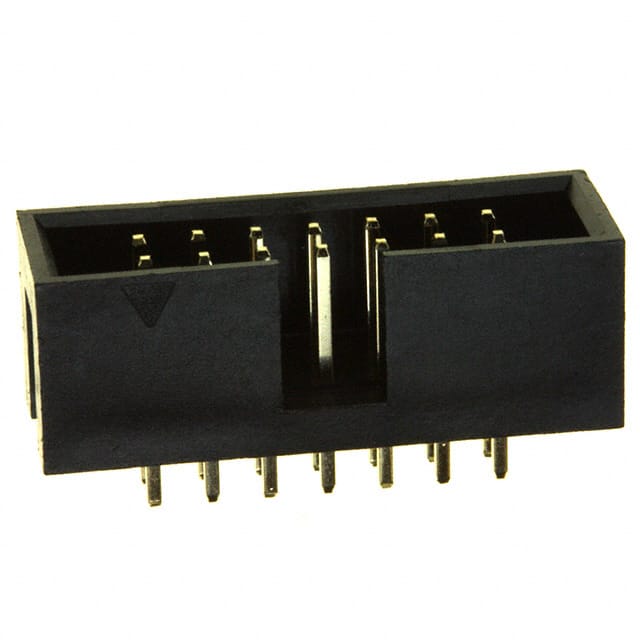

Sullins SBH11 series shrouded box header, straight, with 14 positions (2 rows), 2.54mm pitch, through hole solder termination, and gold flash contact finish.

✓ Total Stock: 370 pcs

$ Price Range: $0.19 - $0.36

SBH11-PBPC-D07-ST-BK Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	370 pcs On Request	370 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SBH11-PBPC-D07-ST-BK Description

Short technical summary and product information.

The Sullins SBH11-PBPC-D07-ST-BK is a 14-position shrouded box header from the SBH11 series. It features a dual-row configuration with 2.54mm pitch and row spacing, making it suitable for board-to-board or cable applications.

This header has a straight (vertical) through-hole mounting style with solder termination. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Contacts are made of brass with a gold flash finish. The shroud is a 4-wall design with push-pull fastening and includes a keying slot for polarization.

Electrically, the rated current is 3A with a maximum contact resistance of 20 mΩ and a minimum insulation resistance of 5000 MΩ. The dielectric withstanding voltage is 1000 VAC. Operating temperature range is -40°C to +105°C.

SBH11-PBPC-D07-ST-BK Quick Information

Product Type: Shrouded Box Header

Series: SBH11

Canonical Name: Sullins SBH11 Series Shrouded Box Header, Male Pins, 14 Positions, 2.54mm Pitch, Through Hole, Straight

Subcategory: Headers, Male Pins

SBH11-PBPC-D07-ST-BK Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SBH11-PBPC-D07-ST-BK Estimated Pricing

Qty	Low	High
1+	$0.36	$0.36
10+	$0.30	$0.30
200+	$0.25	$0.25
600+	$0.23	$0.23
1,000+	$0.22	$0.22
5,000+	$0.20	$0.20
10,000+	$0.19	$0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

SBH11-PBPC-D07-ST-BK Features

Gold flash brass contacts for reliability.
Shrouded 4-wall design with keying slot.
Rated current up to 3 amps.
UL94 V-0 rated PBT insulator.
Operating temperature from -40 to +105°C.

SBH11-PBPC-D07-ST-BK Applications

Board-to-board interconnections in electronics.
Cable-to-board wiring harness assemblies.
Use in industrial control and automation.
Suitable for consumer electronics and peripherals.

SBH11-PBPC-D07-ST-BK FAQs

5 frequently asked questions generated from this part’s specifications.

What is the pitch of this header?

2.54 mm (0.100")

How many positions does this connector have?

14 positions in a dual-row configuration.

What is the current rating?

3 amps.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to +105°C.

Category	Headers, Male Pins
Manufacturer Name	Sullins Connector Solutions
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	3.00 mm (0.118")
Contact Material	Brass
Contact Resistance	20 mΩ
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9.10 mm (0.358")
Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Resistance	5000 MΩ
Lead Spacing	2.54 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C to +105°C
Pitch	2.54 mm (0.100")
Row Spacing	2.54 mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
