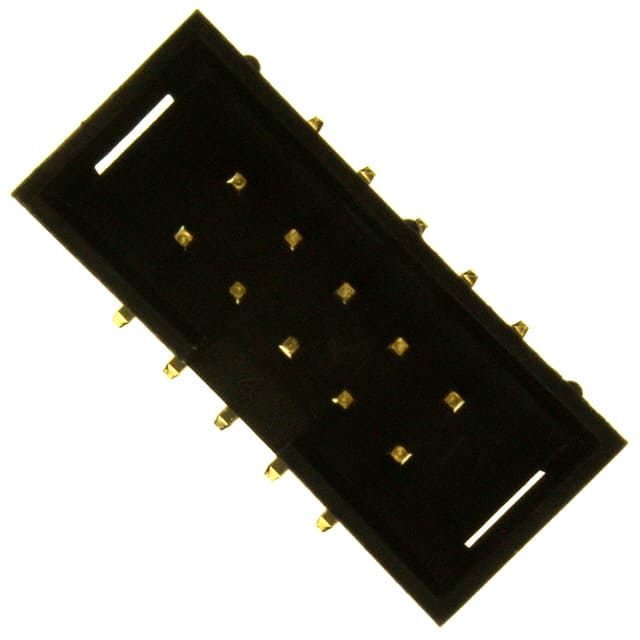

This is a 10-position (2x5) shrouded male pin header from Sullins Connector Solutions, part of the SBH11 series. It features a 2.54mm pitch and row spacing, surface mount termination, and a push-pull fastening type. The header is fully shrouded with four walls, providing protection and polarization.
Electrical specifications include a current rating of 3A, contact resistance of 20 mOhm max, dielectric withstanding voltage of 1000 VAC, and insulation resistance of 5000 MOhm min. The operating temperature range is -40°C to +105°C. Contacts are made of brass with gold flash finish, and the insulator is black polyamide (nylon) with UL94 V-0 flammability rating.
The header is designed for board-to-board or cable applications. It includes a keying slot for alignment. The surface mount package has an insulation height of 9.10mm. Processing temperature ratings are 230°C for 60 seconds and 260°C for 10 seconds, suitable for lead-free soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 29+ | $0.72 | $0.72 |
| 116+ | $0.65 | $0.65 |
| 522+ | $0.59 | $0.59 |
| 1,015+ | $0.56 | $0.56 |
| 5,017+ | $0.50 | $0.50 |
| 10,005+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows of 5 pins each.
2.54mm (0.100") pitch and row spacing.
3A per contact.
Surface mount (SMD) with solder termination.
-40°C to +105°C.
Gold flash overall on brass contacts.
Yes, it is a shrouded header with 4-wall shrouding and a keying slot.
