| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
285 pcs
|
285 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Current - Continuous | |
| Base Current - Peak | |
| Collector Current | |
| Collector Current - Peak | |
| Collector-Base Voltage | |
| Collector-Emitter Breakdown Voltage | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Emitter-Base Voltage | |
| Frequency | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power | |
| Supplier Device Package | |
| Supplier Package | |
| Thermal Resistance Junction-to-Ambient | |
| Total Power Dissipation | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

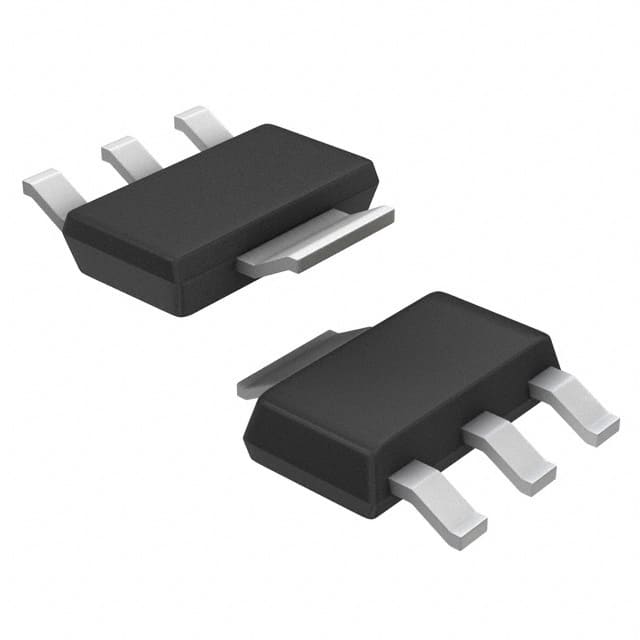

The ON Semiconductor SBCP68T1G is an NPN Silicon Epitaxial Transistor designed for low voltage, high current applications. This device offers a collector-emitter voltage of 20V and a continuous collector current of 1A, with a peak current capability of 3A.
It is housed in a SOT-223 package, which is suitable for medium power surface mount applications. The SOT-223 package ensures level mounting for improved thermal conduction and allows for visual inspection of soldered joints. The formed leads help absorb thermal stress during soldering, preventing damage to the die.
Key electrical characteristics include a DC current gain (hFE) of 85 (min) at 500mA and 1V, and a Vce saturation of 500mV (max) at 100mA and 1A. The transistor operates at frequencies up to 60MHz and has an operating temperature range of -65°C to 150°C.
This device is Pb-free, Halogen Free/BFR Free, and RoHS compliant. Its PNP complement is the BCP69T1. The S prefix indicates suitability for automotive and other applications requiring unique site and control change requirements, with AEC-Q101 qualification and PPAP capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 Vdc.
Surface-mount SOT-223 (TO-261-4).
-65°C to 150°C.
85 at 500 mA collector current and 1 V collector-emitter voltage.
500 mV at 100 mA base current and 1 A collector current.
60 MHz.
3.0 Adc.
