Mfr Part #:

SBCP56T1

Name: SBCP56T1
Brand: On Semiconductor
SKU: SBCP56T1

Mfr Name: On Semiconductor

Description:

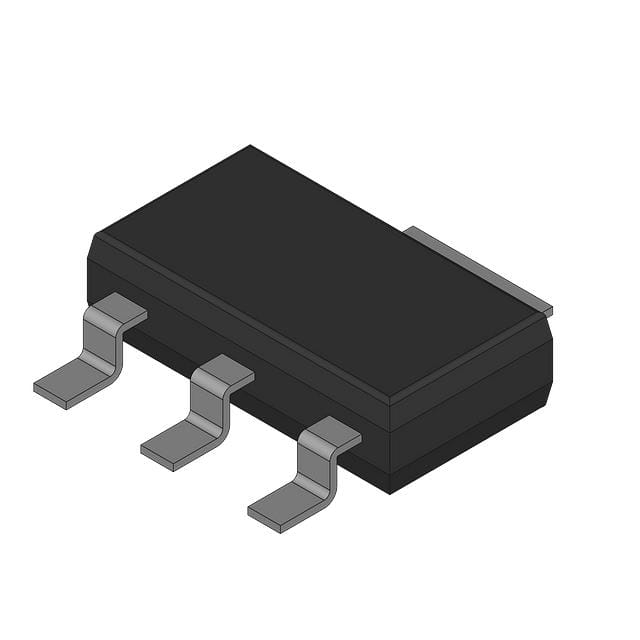

TRANS NPN 80V 1A SOT223

Stock on Request

SBCP56T1 Description

Short technical summary and product information.

TRANS NPN 80V 1A SOT223

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

BCP56T3G

On Semiconductor

TRANS NPN 80V 1A SOT223

BCP56T1G

On Semiconductor

TRANS NPN 80V 1A SOT223

SBCP56T1G

On Semiconductor

TRANS NPN 80V 1A SOT223

SBCP56T3G

On Semiconductor

TRANS NPN 80V 1A SOT223

Category	Transistors - Bipolar (BJT) - Single
Manufacturer Name	On Semiconductor
Current	1 A
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 150mA, 2V
Frequency	130MHz
Mounting Type	Surface Mount
Operating Temperature	-65°C ~ 150°C (TJ)
Power	1.5 W
Supplier Device Package	SOT-223 (TO-261)
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Voltage	80 V
