| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Voltage Rating |

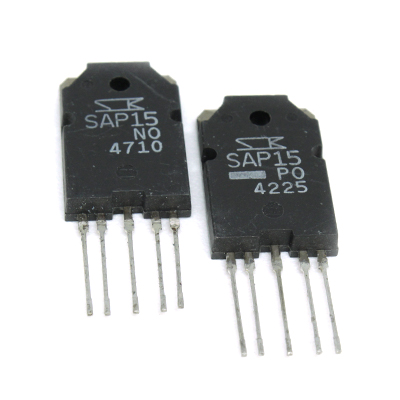

The SAP15N-O from Sanken is a high-performance NPN Darlington transistor designed for various electronic applications. It features a robust voltage rating of 160V and a significant current handling capability of 15A, making it suitable for power switching and amplification circuits.
The transistor is housed in a TO-3P package, which is known for its thermal dissipation properties and ease of mounting. This packaging is ideal for applications requiring reliable performance under demanding conditions.
Key electrical characteristics include its Darlington configuration, which provides high current gain. The component is specified for a 160V breakdown voltage and can handle continuous currents up to 15A. Its TO-3P package facilitates efficient heat management, crucial for maintaining performance and longevity in power applications.
This component is suitable for use in power supplies, motor control circuits, and other high-power switching applications where a high-gain transistor is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SAP15N-O transistor has a voltage rating of 160V.
The SAP15N-O transistor has a current rating of 15A.
The SAP15N-O transistor is supplied in a TO-3P package.
The SAP15N-O transistor has 5 pins.
