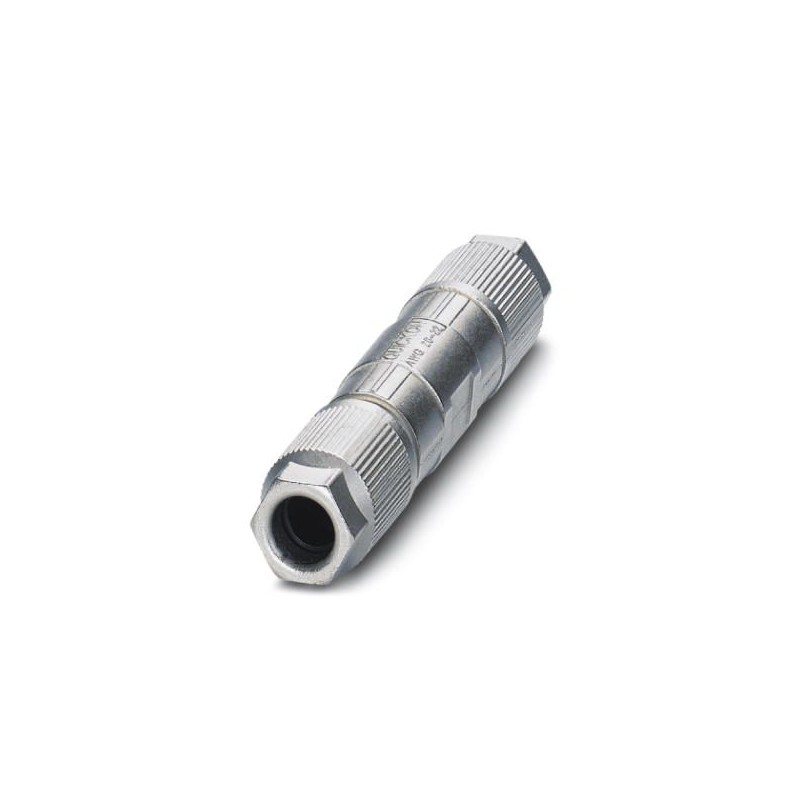

The Phoenix Contact SACC-CC-8QO-0 5 SH is a robust 8-pole cable splicer designed for field assembly within the QUICKON Installation System (QPD).
This connector features a shielded, halogen-free design with insulation cut-off terminals. It is constructed with a zinc die-cast, nickel-plated housing. The rated current is 2A at 40°C, and it supports cable outer diameters ranging from 5 mm to 9.7 mm. The degree of protection is IP65/IP67, making it suitable for harsh environments.
With an operating ambient temperature range of -40°C to 85°C and an assembly temperature range of -5°C to 50°C, this cable splicer offers versatility in application. The wrench size for the union nut is 15 mm, and the required stripping length of the sheath is a minimum of 80 mm.
This product is noted as 'Made to Order' and is non-returnable.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.85 | $6.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2 A at 40°C.
Field mountable.
Yes.
IP65/IP67.
-40°C to 85°C.
5 mm to 9.7 mm.
