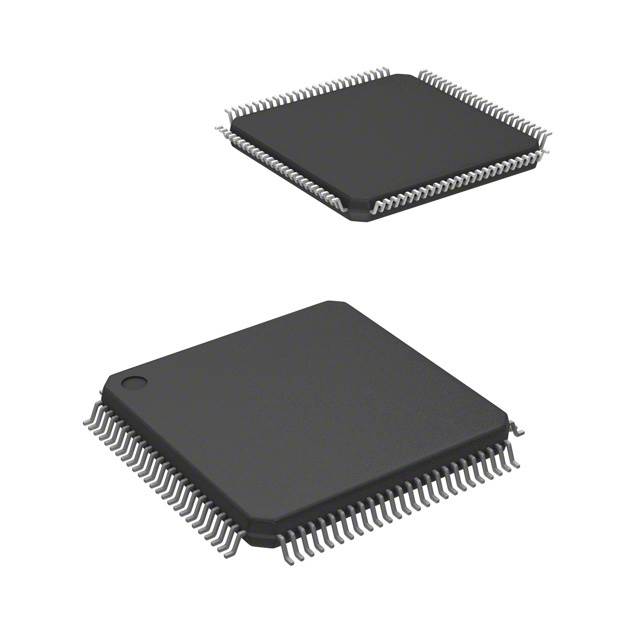

SAA7114H/V2 The NXP Semiconductors SAA7114H/V2 is a video decoder supporting PAL, NTSC, and SECAM formats. It operates with a bandwidth of 7 MHz and a supply voltage range of 3V to 3.6V.
Mfr Part #:

SAA7114H/V2

Available from 1 distributors
Mfr Name: Phihong USA
Phihong USA
The NXP Semiconductors SAA7114H/V2 is a video decoder supporting PAL, NTSC, and SECAM formats. It operates with a bandwidth of 7 MHz and a supply voltage range of 3V to 3.6V.
✓ Total Stock: 491 pcs

SAA7114H/V2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
491 pcs
On Request
491 pcs On Request 1 On Request On Request 0535/0530TP/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SAA7114H/V2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Power Dissipation
Resolution
SVHC Present
Termination Style
Type
View Similar Products (0)

SAA7114H/V2 Description

Short technical summary and product information.

The SAA7114H/V2 from NXP Semiconductors is a versatile video decoder IC designed for processing PAL, NTSC, and SECAM video signals. It features a bandwidth of 7 MHz, making it suitable for various video decoding applications.



This component operates within a supply voltage range of 3V to 3.6V, with a nominal supply current of 90 mA and a power dissipation of 450 mW. The operating temperature range is from 0°C to 70°C.



The SAA7114H/V2 is available in a 100-pin LQFP package, utilizing SMD/SMT termination. It is designed for lead-free applications and adheres to RoHS3 compliance standards. The component is also classified as Moisture Sensitivity Level 1 (MSL 1 Unlimited) and REACH unaffected.



This video decoder is ideal for integration into systems requiring analog video signal decoding and processing.

SAA7114H/V2 Quick Information

Product Type: Video Decoder
Series: SAA7114
Canonical Name: SAA7114H/V2 PAL/NTSC/SECAM Video Decoder
Subcategory: Encoders, Decoders, Converters

SAA7114H/V2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

SAA7114H/V2 Features

  • PAL/NTSC/SECAM video decoding.
  • 7 MHz signal bandwidth.
  • 3V to 3.6V operating voltage.
  • 0°C to 70°C temperature range.
  • 100-pin LQFP package.

SAA7114H/V2 Applications

  • Analog video signal processing.
  • Video capture systems.
  • Multimedia devices.
  • Embedded video applications.

SAA7114H/V2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SAA7114H/V2?

The operating voltage range is 3 V to 3.6 V.

What package is the SAA7114H/V2 available in?

The SAA7114H/V2 is offered in an LQFP package with SMD/SMT termination.

What is the operating temperature range of the SAA7114H/V2?

The operating temperature range is 0°C to 70°C.

What video standards does the SAA7114H/V2 support?

The SAA7114H/V2 supports PAL, NTSC, and SECAM video standards.

What is the typical supply current of the SAA7114H/V2?

The nominal supply current is 90 mA.

What is the maximum power dissipation of the SAA7114H/V2?

The maximum power dissipation is 450 mW.

What is the video bandwidth of the SAA7114H/V2?

The video bandwidth is 7 MHz.
