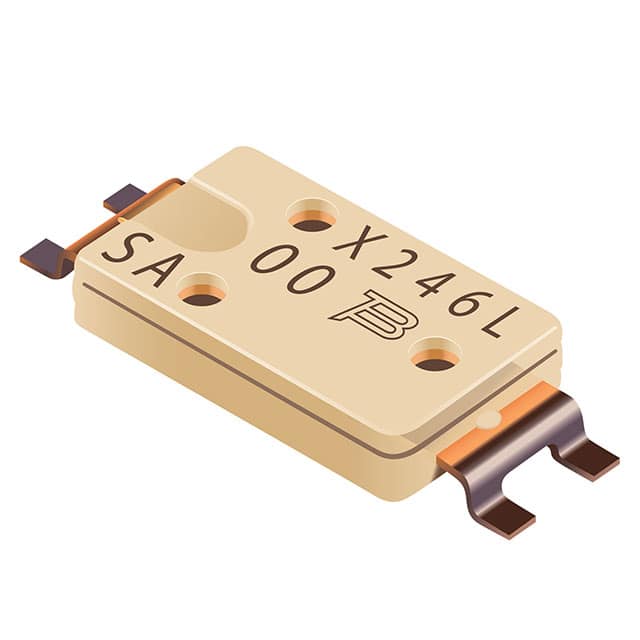

The Bourns SA77SB0 is a miniature thermal cutoff (TCO) breaker from the SA Series, designed for overtemperature and overcurrent protection in battery cell applications. It features a rated functioning temperature of 77°C ±5°C and resets when the ambient temperature drops to a minimum of 40°C.
Electrically, the device is rated for 25 A at 9 V DC for 6000 cycles and can break up to 60 A at 5 V DC for 100 cycles. The maximum voltage rating is 28 V DC at 25 A. It has a maximum leakage current of 200 mA at 25°C and a maximum resistance of 7 mΩ. The minimum holding voltage is 3 V at 25°C.
The SA77SB0 comes in a nonstandard surface mount package with 4 terminals (SMD) and measures 8.0 mm x 5.4 mm x 2.0 mm. It is RoHS3 compliant and carries cUL, TUV, and UL agency approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 5+ | $1.03 | $1.03 |
| 10+ | $0.95 | $0.95 |
| 50+ | $0.79 | $0.79 |
| 100+ | $0.73 | $0.73 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.55 | $0.55 |
| 5,000+ | $0.46 | $0.46 |
| 10,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated functioning (trip) temperature is 77°C ±5°C.
The minimum reset temperature is 40°C.
The contact current rating is 25 A at 9 V DC for 6000 cycles.
The maximum voltage rating is 28 V DC at 25 A.
The package is a nonstandard surface mount with 4 terminals (SMD).
The device measures 8.0 mm in length, 5.4 mm in width, and 2.0 mm in height.
It is approved by cUL, TUV, and UL.
