| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Connector | |
| Applications | |
| Current | |
| Data Interface | |
| Features | |
| Frequency | |
| Gain | |
| Lead Spacing | |
| Modulation or Protocol | |
| Mounting Type | |
| Operating Temperature | |
| Sensitivity | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The SA605D/01,112 from NXP Semiconductors is a monolithic, low-power FM IF system designed for high-performance applications. It integrates a mixer/oscillator, limiting IF amplifiers, quadrature detector, muting, logarithmic RSSI, and a voltage regulator. This device features a mixer input up to 500 MHz and a mixer conversion gain of 13 dB at 45 MHz, with a noise figure of 4.6 dB at 45 MHz. The XTAL oscillator is effective up to 150 MHz.
Key features include 102 dB of IF amplifier/limiter gain and a 25 MHz limiter small signal bandwidth. It also offers a temperature-compensated logarithmic RSSI with a dynamic range exceeding 90 dB and excellent sensitivity of 0.22 µV into a 50 Ω matching network for 12 dB SINAD. The SA605D/01,112 supports ASK and FSK modulation and is suitable for FM remote receiver applications.
This component is available in a 20-SOIC surface mount package with a body width of 7.50 mm. It operates within a temperature range of -40°C to 85°C and consumes a typical current of 5.7 mA at 6V. The device meets cellular radio specifications and is ESD hardened.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 8V.
The frequency range is 0Hz to 500MHz.
The typical current consumption is 5.7mA.
The operating temperature range is -40°C to 85°C.

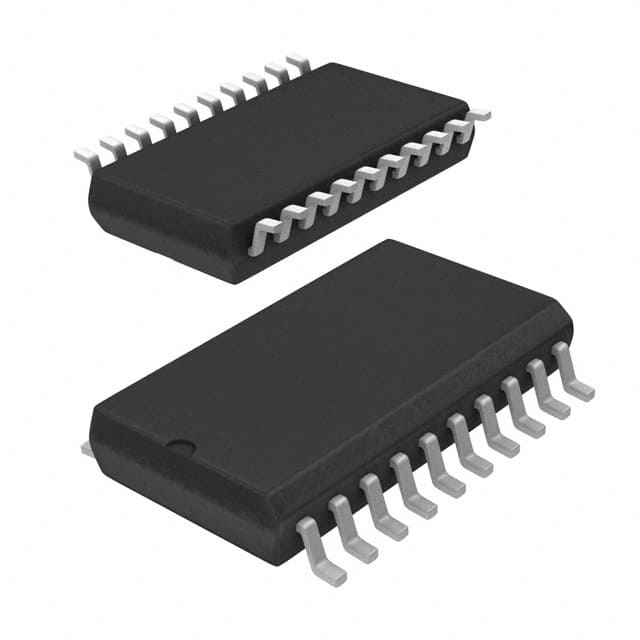

The SA605D/01,112 is in a 20-SOIC (0.295", 7.50mm Width) surface mount package.
It supports ASK and FSK modulation.
Key features include a mixer input to >500 MHz, 102 dB of IF amplifier/limiter gain, and a temperature-compensated logarithmic RSSI.
