| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Emitting Color | |
| Junction Temperature | |
| Lead Spacing | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Number of Characters | |
| Power Dissipation (Max) | |
| Reverse Current | |
| Reverse Voltage | |
| Spectral Bandwidth | |
| Voltage | |
| Wavelength |

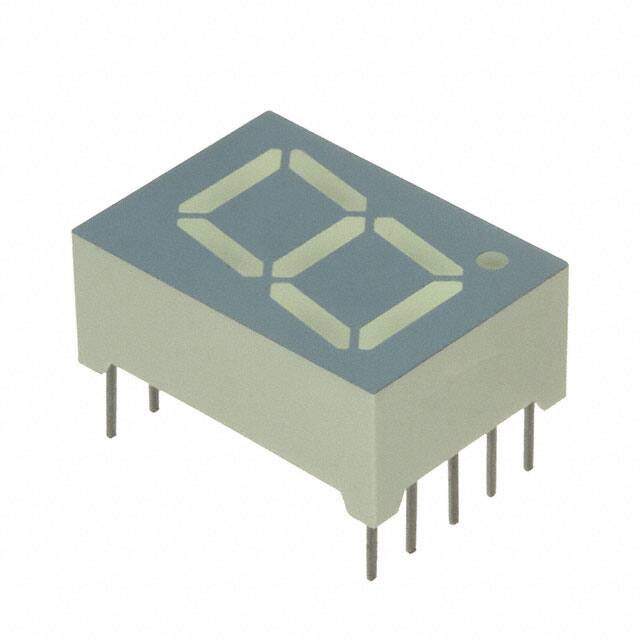

The Kingbright SA52-11EWA is a high-efficiency red single-digit numeric display. It features a 0.52-inch (13.2mm) character height with excellent character appearance and easy mounting on PC boards or sockets. The display has a standard gray face with white segments.
Key electrical specifications include a typical forward voltage of 2V at 20mA DC forward current, and a typical luminous intensity of 6.4mcd. The peak emission wavelength is 627nm, with a dominant wavelength of 617nm. The display can dissipate up to 75mW.
This component is housed in a 10-DIP package with through-hole mounting. It operates within a temperature range of -40°C to +85°C and has a junction temperature rating of 125°C. The display is suitable for applications such as home and smart appliances, display time, and industrial instrumentation.
The SA52-11EWA is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The character height is 0.52 inches (13.21mm).
The typical luminous intensity is 6.4mcd at 10mA.
The typical forward voltage is 2V at 10mA.
The operating temperature range is -40°C to +85°C.
The package type is 10-DIP (0.600", 15.24mm).
