| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,924 pcs
|
5924 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| SVHC Present | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

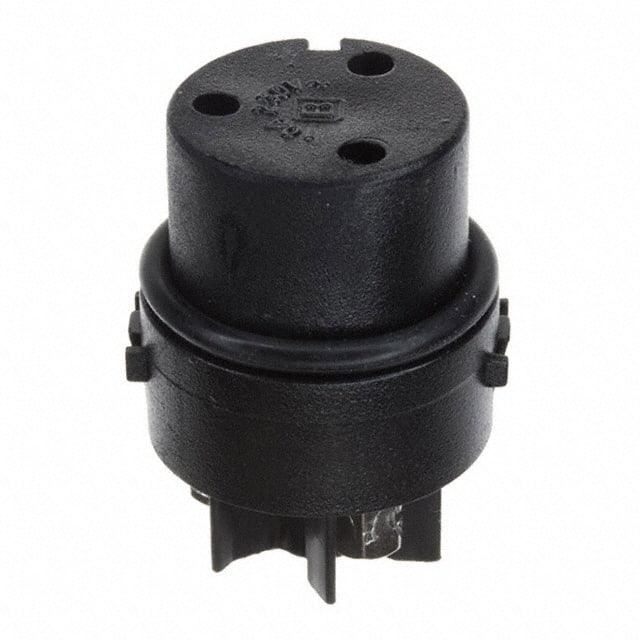

The SA3229 is a female insert from the Bulgin Mini Buccaneer series of circular power connectors. It provides 3 screw-terminated contacts: 2 power positions and a protective earth. The insert is designed for use with a separate shell (not included) and achieves IP68 ingress protection when properly mated.
Electrical ratings are 10A continuous current at 250VAC. The contacts have a nickel finish for corrosion resistance. The insert is keyed to prevent mis-mating and operates over a temperature range of -20°C to 70°C. The housing material meets UL94 V-0 flammability rating.
Typical applications include industrial power distribution, outdoor lighting, marine equipment, and other harsh-environment connections. The screw terminal design allows easy field termination without special tools. The compact size fits the Mini Buccaneer body styles.
| Qty | Low | High |
|---|---|---|
| 25+ | $7.96 | $7.96 |
| 75+ | $7.57 | $7.57 |
| 150+ | $7.15 | $7.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (2 power + PE).
10A.
250VAC.
Insert only, requires a separate shell. Not a panel mount connector.
IP68 when mated with a suitable shell.
-20°C to 70°C.
Screw termination.
