| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

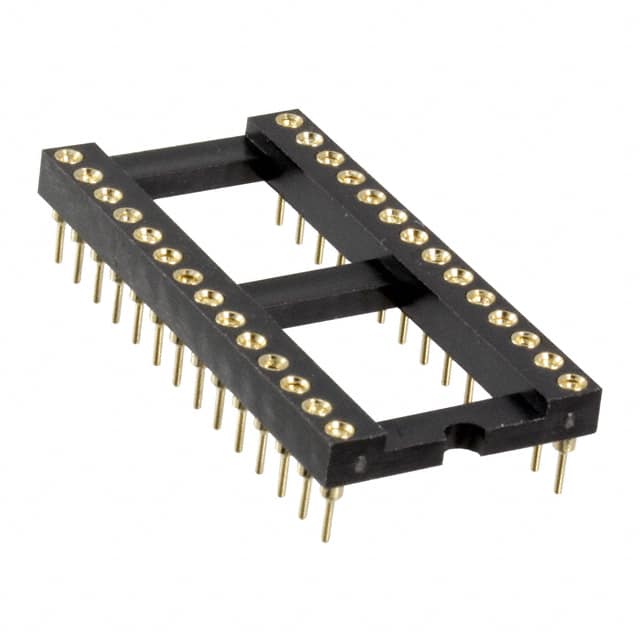

The SA286040 is a 28 position DIP socket from On Shore Technology Inc. designed for through hole mounting. It features a 0.6" (15.24mm) row spacing and a 2.54mm pitch, making it suitable for standard dual in-line package ICs.
The socket uses beryllium copper contacts with a gold flash finish for reliable electrical connections. The housing is made of glass filled thermoplastic polyester, providing durability and thermal stability. The open frame design allows for airflow and easy inspection of solder joints.
This socket operates over a temperature range of -40°C to 105°C, making it suitable for a variety of industrial and commercial applications. The solder termination ensures secure attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.85 | $1.85 |
| 17+ | $1.51 | $1.51 |
| 34+ | $1.44 | $1.44 |
| 51+ | $1.40 | $1.40 |
| 102+ | $1.33 | $1.33 |
| 255+ | $1.25 | $1.25 |
| 510+ | $1.19 | $1.19 |
| 1,003+ | $1.13 | $1.13 |
| 2,516+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SA286040 has 28 positions arranged in a 2 x 14 grid.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
-40°C to 105°C.
Beryllium copper with gold flash finish.
