| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
458 pcs
|
458 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Lead Spacing | |
| Millicandela Rating | |
| Number of Characters | |
| Power Dissipation (Max) | |
| Reverse Current | |
| Voltage | |
| Wavelength |

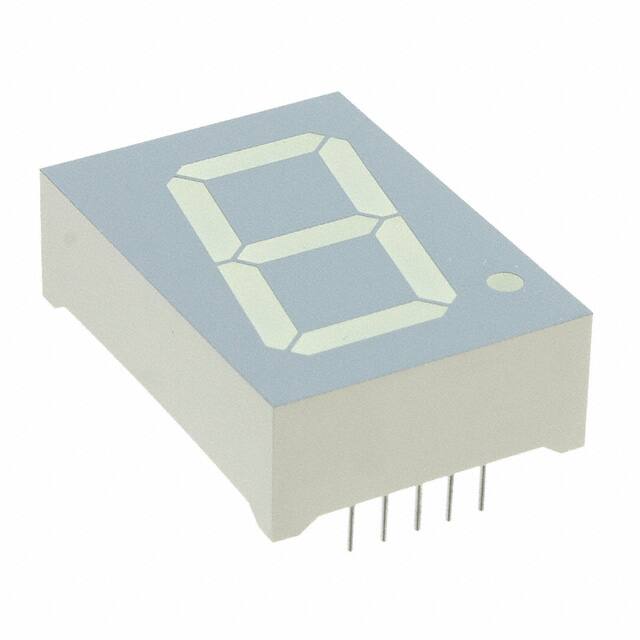

The Kingbright SA10-21SRWA is a single-digit, 7-segment numeric display with a prominent 1.0 inch digit height. This device emits a Super Bright Red light, utilizing Gallium Aluminum Arsenide Red Light Emitting Diode technology. It operates with a common anode configuration and offers excellent character appearance with high light output.
Key electrical characteristics include a typical forward voltage of 3.7V and a maximum power dissipation of 150mW. The dominant wavelength is 640nm, with a peak emission wavelength of 655nm. The display is designed for low current operation, typically drawing 20mA, and has a luminous intensity of 120mcd.
Packaged in a 10-DIP format, the SA10-21SRWA is designed for easy mounting on P.C. boards or sockets, offering a mechanically rugged solution. Its dimensions are 1.339" H x 0.945" W x 0.413" D. This display is suitable for applications such as home and smart appliances, display time, digital combinations, and industrial instrumentation.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is important to observe precautions for handling electrostatic discharge sensitive devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digit height is 1.0 inch.
The display emits a Red color.
The typical luminous intensity is 120mcd.
The typical forward voltage is 3.7V.
The maximum power dissipation is 150mW.
The wavelength is 660nm.
The typical operating current is 20mA.
