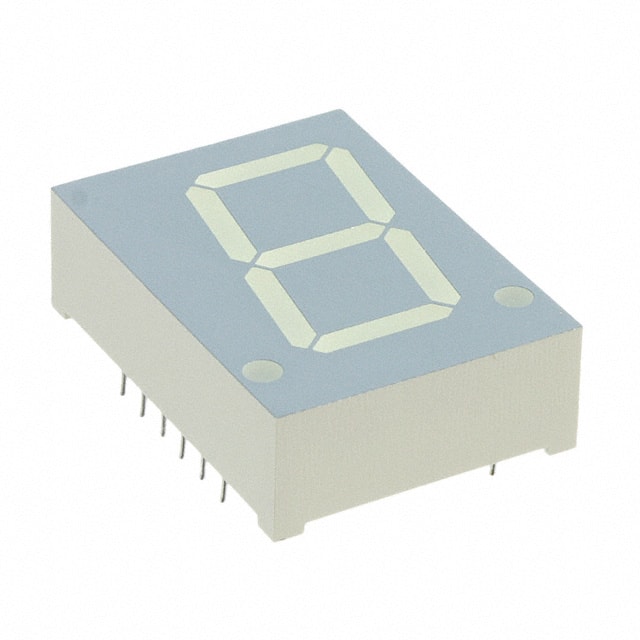

SA08-11EWA The Kingbright SA08-11EWA is a 0.8 inch, single-digit, 7-segment LED display with a High Efficiency Red color. It features a Common Anode connection and a digit height of 20.32mm.
Mfr Part #:

SA08-11EWA

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright SA08-11EWA is a 0.8 inch, single-digit, 7-segment LED display with a High Efficiency Red color. It features a Common Anode connection and a digit height of 20.32mm.
✓ Total Stock: 1,510 pcs
$ Price Range: $0.99

SA08-11EWA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SA08-11EWA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Emitting Color
Junction Temperature
Lead Spacing
Millicandela Rating
Number of Characters
Operating Temperature
Power Dissipation (Max)
Reverse Current
Storage Temperature
Voltage
Wavelength
View Similar Products (0)

SA08-11EWA Description

Short technical summary and product information.

The Kingbright SA08-11EWA is a single-digit, 7-segment LED display module featuring a High Efficiency Red emitting color. With a prominent 0.8-inch (20.32mm) digit height, this display is designed for clear visibility in various applications.



Key electrical characteristics include a typical forward voltage of 1.9V at 10mA, a typical luminous intensity of 8000 mcd, and a peak wavelength of 627nm. The display operates with a Common Anode configuration and has a maximum power dissipation of 75mW. Its operating temperature range is from -40°C to +85°C, making it suitable for diverse environmental conditions.



The SA08-11EWA is housed in an 18-DIP package, offering easy mounting on PC boards or sockets. Its applications span home and smart appliances, display time, industrial instrumentation, and numeric status indicators. The display's mechanical ruggedness and excellent character appearance contribute to its reliability in demanding use cases.

SA08-11EWA Quick Information

Product Type: LED Display
Canonical Name: Kingbright SA08-11EWA 0.8 inch High Efficiency Red 7-Segment Common Anode LED Display
Subcategory: Numeric Display

SA08-11EWA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SA08-11EWA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SA08-11EWA Features

  • 0.8 inch (20.32mm) single digit height.
  • High Efficiency Red emitting color.
  • Common Anode connection type.
  • Typical forward voltage of 1.9V.
  • Typical luminous intensity of 8000 mcd.

SA08-11EWA Applications

  • Ideal for home appliances.
  • Suitable for industrial instrumentation.
  • Used for display time applications.
  • Applicable for numeric status indicators.

SA08-11EWA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the digit height of the SA08-11EWA display?

The digit height of the SA08-11EWA display is 0.8 inches (20.32mm).

What is the typical luminous intensity of the Kingbright SA08-11EWA?

The typical luminous intensity for the SA08-11EWA is 8000 mcd at 10mA.

What is the typical forward voltage for the SA08-11EWA?

The typical forward voltage for the SA08-11EWA is 1.9V at a forward current of 10mA.

What is the operating temperature range for this LED display?

The operating temperature range for the SA08-11EWA is -40°C to +85°C.

Is the SA08-11EWA RoHS compliant?

The SA08-11EWA is RoHS3 Compliant.
