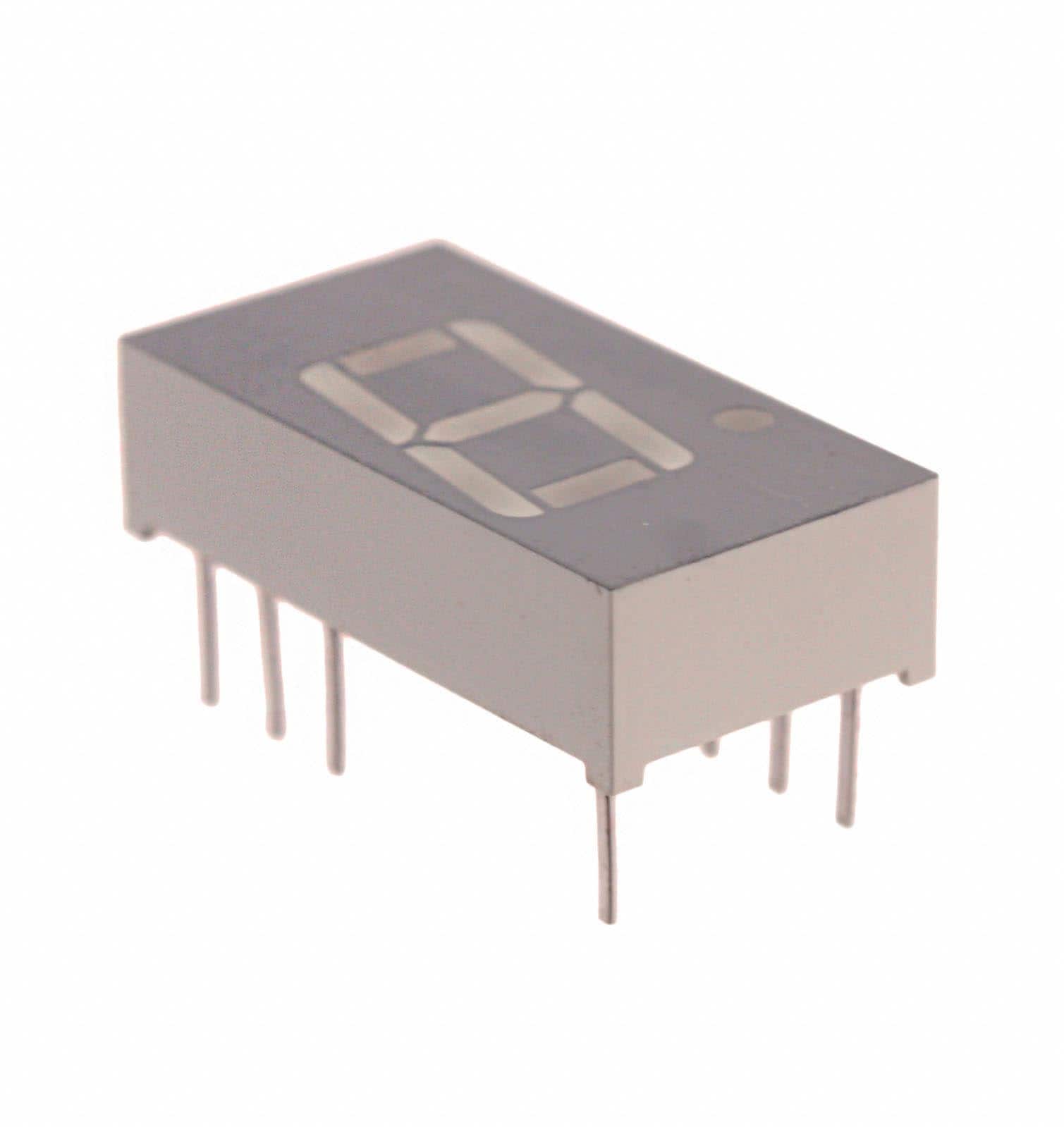

SA04-11GWA The Kingbright SA04-11GWA is a 0.4-inch single-digit, 7-segment LED display in green. It operates with a typical forward voltage of 2.2V and a current of 20mA.
Mfr Part #:

SA04-11GWA

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright SA04-11GWA is a 0.4-inch single-digit, 7-segment LED display in green. It operates with a typical forward voltage of 2.2V and a current of 20mA.
✓ Total Stock: 676 pcs
$ Price Range: $0.99

SA04-11GWA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
676 pcs
On Request
676 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SA04-11GWA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Lead Spacing
Millicandela Rating
Number of Characters
Operating Temperature
Power Dissipation (Max)
Reverse Voltage
Storage Temperature
Tape & Reel
Voltage
Wavelength
View Similar Products (0)

SA04-11GWA Description

Short technical summary and product information.

This Kingbright SA04-11GWA is a single-digit, 7-segment LED display module with a green light-emitting source. It features a digit height of 0.4 inches (10.16mm) and a common anode configuration.



The display is designed for low current operation, with a typical forward voltage of 2.2V and a maximum power dissipation of 62.5mW. The peak emission wavelength is 565nm, and the dominant wavelength is 568nm. The operating temperature range is from -40°C to +85°C.



Packaged in a 14-DIP format, this display is suitable for various applications including home and smart appliances, industrial instrumentation, and numeric status indicators. Its mechanically rugged design and easy mounting on PC boards or sockets make it a versatile component for digital displays and combinations.



The RoHS3 compliant status indicates adherence to environmental regulations. The display has a Moisture Sensitivity Level (MSL) of 1, meaning it has unlimited shelf life under recommended storage conditions.

SA04-11GWA Quick Information

Product Type: 7-Segment LED Display
Canonical Name: Kingbright SA04-11GWA 7-Segment Green LED Display
Subcategory: 7-Segment Display

SA04-11GWA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SA04-11GWA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SA04-11GWA Features

  • 0.4 inch single digit 7-segment display.
  • Green light emitting diode source.
  • Common anode configuration.
  • Low current operation.
  • RoHS3 compliant.

SA04-11GWA Applications

  • Ideal for home appliances.
  • Suitable for smart appliances.
  • Used in numeric status displays.
  • Applicable for industrial instrumentation.

SA04-11GWA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the digit height of the SA04-11GWA display?

The digit height is 0.4 inches.

What color is the SA04-11GWA LED display?

The display is green.

What is the typical forward voltage for the SA04-11GWA?

The typical forward voltage is 2.2V at 10mA.

What is the operating current for the SA04-11GWA?

The operating current is 20mA.

What is the package type for the SA04-11GWA?

The package type is 14-DIP.

What is the operating temperature range for this display?

The operating temperature range is -40°C to +85°C.

Is the SA04-11GWA RoHS compliant?

Yes, the SA04-11GWA is RoHS3 compliant.
