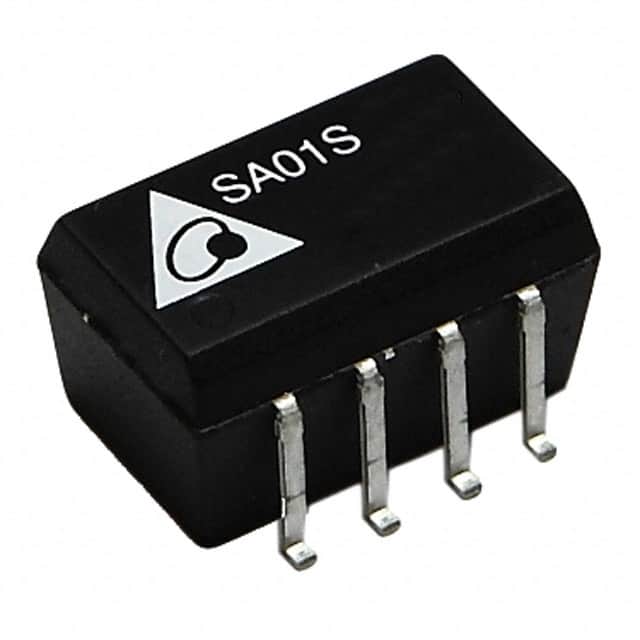

SA01S2412A The SA01S2412A is an isolated DC/DC converter from Delta Electronics. It provides a regulated 12V output at 84mA (1W) from a 21.6V to 26.4V input, with 1000VDC isolation.
Mfr Part #:

SA01S2412A

Available from 1 distributors
Mfr Name: Delta Electronics
Delta Electronics
The SA01S2412A is an isolated DC/DC converter from Delta Electronics. It provides a regulated 12V output at 84mA (1W) from a 21.6V to 26.4V input, with 1000VDC isolation.
✓ Total Stock: 21 pcs
$ Price Range: $7.62

SA01S2412A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SA01S2412A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimensions
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Storage Temperature
Tape & Reel
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

SA01S2412A Description

Short technical summary and product information.

The SA01S2412A is a miniature isolated DC/DC converter from Delta Electronics' SA01S series. It delivers a regulated 12V output at 84mA (1W) from a nominal 24V input (21.6V to 26.4V range). The module features 1000VDC input-to-output isolation, making it suitable for applications requiring galvanic isolation.



Key electrical specifications include an efficiency of 80% typical, switching frequency of 50kHz/100kHz/140kHz, and line regulation of ±1.2% typical. The output ripple and noise is 60mV typical (peak-to-peak) at 20MHz bandwidth. The converter includes short circuit protection with a maximum duration of 0.5s.



The device is housed in an 8-SMD module package measuring 12.8mm x 10.7mm x 7.0mm, designed for surface mount assembly. It operates over a temperature range of -40°C to +85°C and has a moisture sensitivity level of 3. The MTBF is 2,000,000 hours per MIL-HDBK-217F at 25°C ground benign conditions.



This converter is suitable for medical applications and other systems requiring isolated power in a compact SMD footprint. It is RoHS3 compliant and lead-free.

SA01S2412A Quick Information

Product Type: DC DC Converter
Series: SA01S
Canonical Name: Delta Electronics SA01S2412A Isolated DC/DC Converter, 12V Output, 1W
Subcategory: DC DC Converters

SA01S2412A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 2
REACH Status: REACH Unaffected
Lead Free: Lead Free

SA01S2412A Estimated Pricing

Qty Low High
100+ $7.62 $7.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

SA01S2412A Features

  • Isolated DC/DC converter with 1000VDC isolation.
  • Regulated 12V output at 84mA (1W).
  • Wide input range 21.6V to 26.4V.
  • Surface mount 8-SMD module package.
  • RoHS3 compliant and lead-free.

SA01S2412A Applications

  • Ideal for medical equipment requiring isolation.
  • Used in industrial control systems.
  • Suitable for battery-powered devices.
  • Perfect for space-constrained PCB designs.

SA01S2412A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the SA01S2412A?

The input voltage range is 21.6V to 26.4V (nominal 24V).

What is the package type of the SA01S2412A?

It comes in an 8-SMD Module package.

What is the operating temperature range?

-40°C to +85°C.

Is the SA01S2412A RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the isolation voltage rating?

1000VDC.

What is the output current rating?

84mA at 12V output.

What is the typical efficiency?

80% typical.
