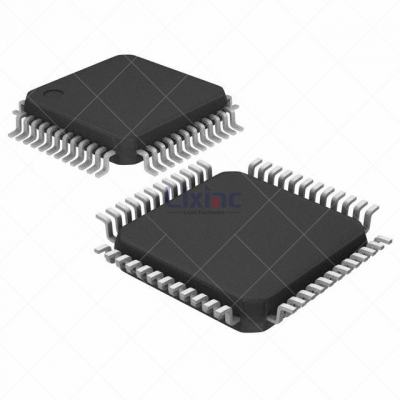

S9S12G64F0MLF The Freescale S9S12G64F0MLF is a 16-bit microcontroller featuring an S12 core, 64KB of Flash memory, and 2KB of RAM. It operates with a maximum clock frequency of 25 MHz.
Mfr Part #:

S9S12G64F0MLF

Available from 1 distributors
Mfr Name: Freescale Semiconductor
Freescale Semiconductor
The Freescale S9S12G64F0MLF is a 16-bit microcontroller featuring an S12 core, 64KB of Flash memory, and 2KB of RAM. It operates with a maximum clock frequency of 25 MHz.
✓ Total Stock: 15 pcs

S9S12G64F0MLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S9S12G64F0MLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Operating Voltage
Package / Case
Program Memory Size
RAM Size
SVHC Present
View Similar Products (0)

S9S12G64F0MLF Description

Short technical summary and product information.

The S9S12G64F0MLF from Freescale Semiconductor is a 16-bit microcontroller based on the S12 core architecture. It offers 64KB of program memory (Flash) and 2KB of RAM, making it suitable for various embedded applications.



This microcontroller operates within a voltage range of 3.13V to 5.5V and can function in temperatures from -40°C to +125°C. It features a maximum clock frequency of 25 MHz and a 16-bit data bus width.



The S9S12G64F0MLF is supplied in an LQFP-48 package and is designed for surface-mount (SMD/SMT) assembly. It includes an integrated Analog-to-Digital Converter (ADC).



Key specifications include its 16-bit S12 core, 64KB Flash, 2KB RAM, and operation up to 25MHz. The device is RoHS3 compliant and has an MSL rating of 1.

S9S12G64F0MLF Quick Information

Product Type: Microcontroller
Series: MC9S12G
Canonical Name: Freescale S9S12G64F0MLF Microcontroller
Subcategory: 16-bit Microcontrollers

S9S12G64F0MLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S9S12G64F0MLF Features

  • 16-bit S12 core microcontroller.
  • 64KB Flash memory.
  • 2KB RAM.
  • Operates at up to 25 MHz.
  • LQFP-48 package for SMD mounting.

S9S12G64F0MLF Applications

  • Suitable for embedded control systems.
  • Used in automotive applications.
  • Ideal for signal processing tasks.
  • General purpose microcontroller applications.

S9S12G64F0MLF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the S9S12G64F0MLF?

The operating voltage is 3.13 V to 5.5 V.

What is the package type of the S9S12G64F0MLF?

The package type is LQFP-48.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40 C to +125 C.

What is the Flash memory size?

The program memory size is 64 KB.

What is the maximum clock frequency?

The maximum clock frequency is 25 MHz.
