| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,014 pcs
|
2014 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connectivity | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed |

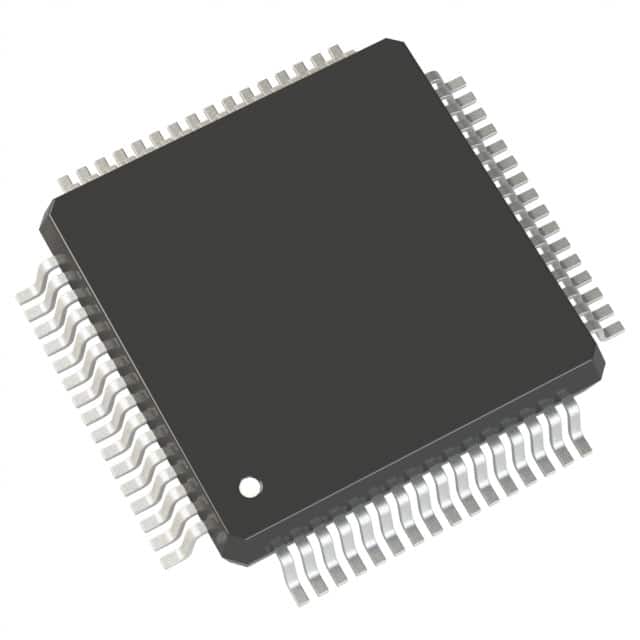

The S9S12G48F0MLH from NXP USA Inc. is a 16-bit embedded microcontroller belonging to the HCS12 series. It offers 48KB of FLASH program memory and 4KB of RAM, making it suitable for various embedded applications.
This microcontroller operates within a supply voltage range of 3.13V to 5.5V and can function at clock speeds up to 25MHz. It includes peripherals such as LVD, POR, PWM, and WDT, enhancing its functionality. The device features 54 I/O pins and a 1.5KB EEPROM.
Packaged in a 64-LQFP (10x10) format, the S9S12G48F0MLH is designed for surface mounting. It operates across a wide temperature range of -40°C to 125°C (TA). Connectivity options include CANbus, IrDA, LINbus, SCI, and SPI, providing versatile communication capabilities.
The S9S12G48F0MLH is RoHS3 Compliant, with an MSL of 1 and REACH Unaffected status.
The operating voltage range is 3.13V to 5.5V.
The clock speed is 25MHz.
It has 48KB of Flash program memory.
The operating temperature range is -40°C to 125°C.
It is available in a 64-LQFP surface-mount package.
It has 54 I/O pins.
It supports CANbus, IrDA, LINbus, SCI, and SPI.
