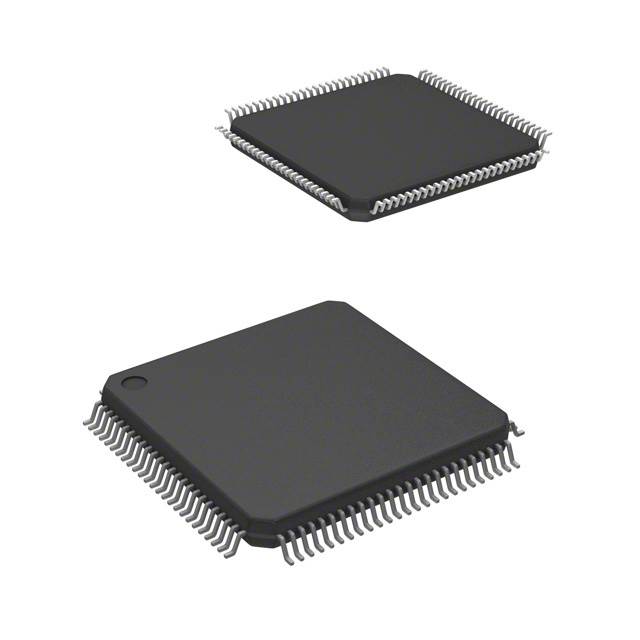

S9S12G128F0VLL The S9S12G128F0VLL is a 16-bit microcontroller from NXP Semiconductors, part of the HCS12 series. It offers 128KB of FLASH program memory and operates at speeds up to 25MHz.
Mfr Part #:

S9S12G128F0VLL

Available from 2 distributors
Mfr Name: Freescale Semiconductor
Freescale Semiconductor
The S9S12G128F0VLL is a 16-bit microcontroller from NXP Semiconductors, part of the HCS12 series. It offers 128KB of FLASH program memory and operates at speeds up to 25MHz.
✓ Total Stock: 1,926 pcs
$ Price Range: $2.50

S9S12G128F0VLL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
963 pcs
On Request
963 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
963 pcs
On Request
963 pcs On Request 1 On Request On Request 1745+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S9S12G128F0VLL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
EEPROM Size
Mounting Type
Number of I/O
Oscillator Type
Peripherals
Program Memory Size
RAM Size
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

S9S12G128F0VLL Description

Short technical summary and product information.

The S9S12G128F0VLL is a high-performance 16-bit microcontroller from NXP Semiconductors, designed for embedded applications. It features a 12V1 core processor capable of operating at speeds up to 25MHz.



This MCU is equipped with 128KB of FLASH program memory and 8KB of RAM, along with 4KB of EEPROM for non-volatile data storage. It supports a wide supply voltage range of 3.13V to 5.5V and offers 86 I/O pins for extensive connectivity and control. Key peripherals include Low Voltage Detection (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT).



Connectivity options include CANbus, IrDA, LINbus, SCI, and SPI. For data acquisition, it features a 12-channel 10-bit Analog-to-Digital Converter (A/D). The S9S12G128F0VLL utilizes an internal oscillator for reliable timing and is supplied in a surface-mount package, suitable for compact PCB designs.



Ideal applications include automotive systems, industrial automation, consumer electronics, and medical devices. NXP Semiconductors provides development tools such as the CodeWarrior Development Studio and evaluation kits like the S12G Tower System to support development.

S9S12G128F0VLL Quick Information

Product Type: Microcontroller
Series: S12G
Canonical Name: S9S12G128F0VLL Microcontroller
Subcategory: Embedded

S9S12G128F0VLL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S9S12G128F0VLL Estimated Pricing

Qty Low High
1+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

S9S12G128F0VLL Features

  • 16-bit microcontroller with 12V1 core processor.
  • Operates at speeds up to 25MHz.
  • 128KB FLASH program memory and 8KB RAM.
  • Supports 3.13V to 5.5V supply voltage.
  • Features 86 I/O pins and multiple communication interfaces.

S9S12G128F0VLL Applications

  • Ideal for automotive systems.
  • Suitable for industrial automation.
  • Applicable in consumer electronics.
  • Used in medical devices.

S9S12G128F0VLL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating speed of the S9S12G128F0VLL microcontroller?

The S9S12G128F0VLL microcontroller operates at speeds up to 25MHz.

How much FLASH program memory does the S9S12G128F0VLL have?

The S9S12G128F0VLL has 128KB of FLASH program memory.

What is the RAM size of the S9S12G128F0VLL?

The S9S12G128F0VLL has 8KB of RAM.

What is the supply voltage range for the S9S12G128F0VLL?

The S9S12G128F0VLL supports a supply voltage range of 3.13V to 5.5V.

How many I/O pins are available on the S9S12G128F0VLL?

The S9S12G128F0VLL features 86 I/O pins.

What connectivity options does the S9S12G128F0VLL support?

The S9S12G128F0VLL supports CANbus, IrDA, LINbus, SCI, and SPI.

What type of analog-to-digital converter is included in the S9S12G128F0VLL?

The S9S12G128F0VLL includes a 12-channel 10-bit Analog-to-Digital Converter (A/D).
