| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | 1628+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Failure Rate | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Operating Voltage | |
| Oscillator Type | |
| Package / Case | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package |

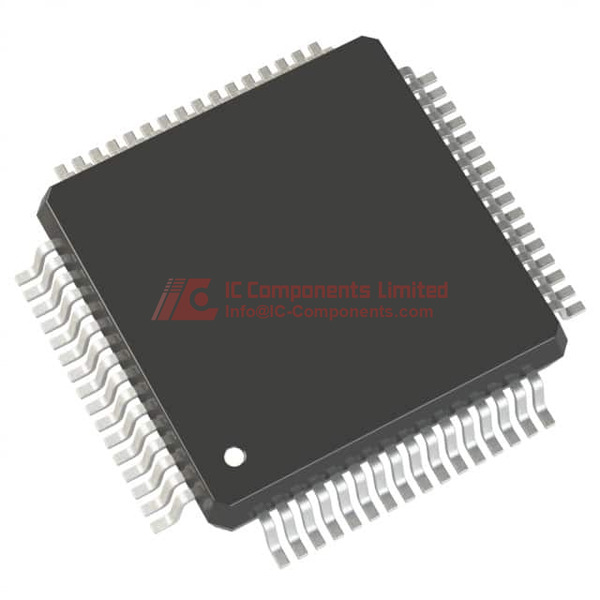

The MC9S08DZ32MLH is an 8-bit microcontroller from NXP Semiconductors' S08 series. This device features 32KB of on-chip Flash memory, 2KB of RAM, and 1KB of EEPROM, making it suitable for embedded control applications. It operates at a speed of up to 40MHz and is housed in a 64-pin LQFP package with a 10x10mm footprint, designed for surface mounting.
Key electrical specifications include a supply voltage range of 2.7V to 5.5V and 53 I/O pins. It is equipped with a 24-channel, 12-bit Analog-to-Digital Converter (ADC) for sensor interfacing. Connectivity options include CANbus, I²C, LINbus, SCI, and SPI.
The operating temperature range is -40°C to 125°C, suitable for industrial environments. The microcontroller includes peripherals such as LVD, POR, PWM, and a watchdog timer to enhance system control and safety. This device is noted as obsolete and primarily available as new old stock.
2.7V to 5.5V.
-40°C to 125°C.
64-LQFP (10x10mm).
32KB.
53.
CANbus, I²C, LINbus, SCI, and SPI.
12-bit with 24 channels.
