| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,040 pcs
|
5040 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Operating Voltage | |
| Oscillator Type | |
| Package / Case | |
| Peripherals | |
| Program Memory Size | |
| RAM Size | |
| SVHC Present | |
| Supplier Device Package |

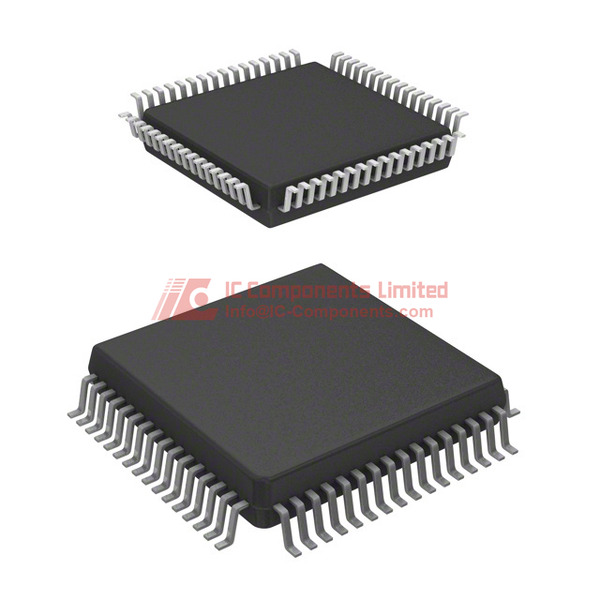

This NXP Semiconductors S9S08AW32E5CFUE is an 8-bit microcontroller belonging to the S08 series. It offers 32KB of Flash program memory and 2KB of RAM, making it suitable for various embedded applications.
The microcontroller operates within a voltage range of 2.7V to 5.5V and can achieve clock speeds of up to 40MHz. It includes peripherals such as LVD, POR, PWM, and WDT, along with 16 channels of 10-bit Analog-to-Digital converters. The device supports I²C, SCI, and SPI communication interfaces.
Designed for surface mounting, the S9S08AW32E5CFUE comes in a 64-QFP package. Its operating temperature range is -40°C to 85°C (TA). The component is RoHS3 compliant.
This part is ideal for designs requiring a compact, efficient 8-bit processing core with integrated Flash memory and a range of peripherals. Its operating characteristics and package type make it versatile for industrial and consumer electronics.
The operating voltage is 2.7V to 5.5V.
The clock speed is 40MHz.
It has 2KB of RAM.
The program memory size is 32KB.
The operating temperature range is -40°C to 85°C.
It is supplied in a 64-QFP package.
It requires surface mounting.
