BAT54JFILM-HQ
STMicroelectronics
The STMicroelectronics BAT54JFILM-HQ is a Schottky diode array designed for surface mount applications. It offers a 40V reverse voltage and 200mA average rectified current per diode.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
673 pcs
|
673 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | 0705+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

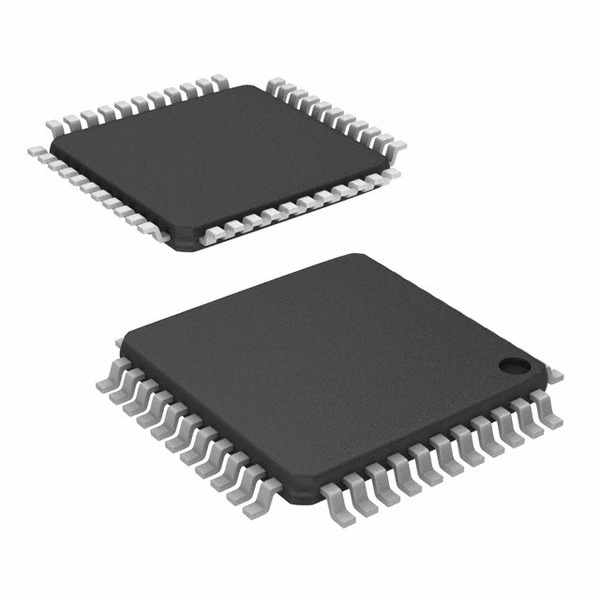

The S9S08AW16MFGE is an 8-bit microcontroller from NXP USA Inc., built on the S08 core. It offers 16KB of Flash program memory and 1KB of RAM, making it suitable for various embedded control applications.
This microcontroller operates at speeds up to 40MHz and supports a wide supply voltage range from 2.7V to 5.5V. It includes essential peripherals such as LVD, POR, PWM, and WDT, along with an 8-channel 10-bit ADC for data conversion. Connectivity options include I2C, SCI, and SPI interfaces.
The device is housed in a 44-LQFP (10x10mm) surface-mount package, designed for direct board soldering and automated assembly. It operates reliably within an industrial temperature range of -40°C to 125°C.
Suitable for automotive electronics, industrial controls, smart sensors, and consumer electronics, the S9S08AW16MFGE provides a balance of performance, integrated analog functions, and dependable serial interfaces for demanding embedded systems.
2.7V to 5.5V.
-40°C to +125°C.
44-LQFP (10x10mm).
16KB.
40MHz.
34 I/O pins.
I2C, SCI, and SPI.
